Operating Environment 0℃ - 40℃; Indoor; 10%-85%RH
Depth Technology Structured Light
Depth Range *0.6-8m
Wavelength 850nm
Processor Orbbec ASIC
IMU N/A
SDK Orbbec SDK
Spatial Precision ±3mm @ 1m
Depth FoV H58.4° V45.5°
Depth Resolution and Frame Rate 1280X1024@30fps, 640X480@30fps
RGB FoV H69.2° V52°
RGB Resolution and Frame Rate 1920X1080@30fps
Power Consumption Average <3.5W
Connector USB 3.0 Type-C
Weight 250.1g
Dimensions (W*H*D) 178.32mm x 35.32mm x 38.10mm

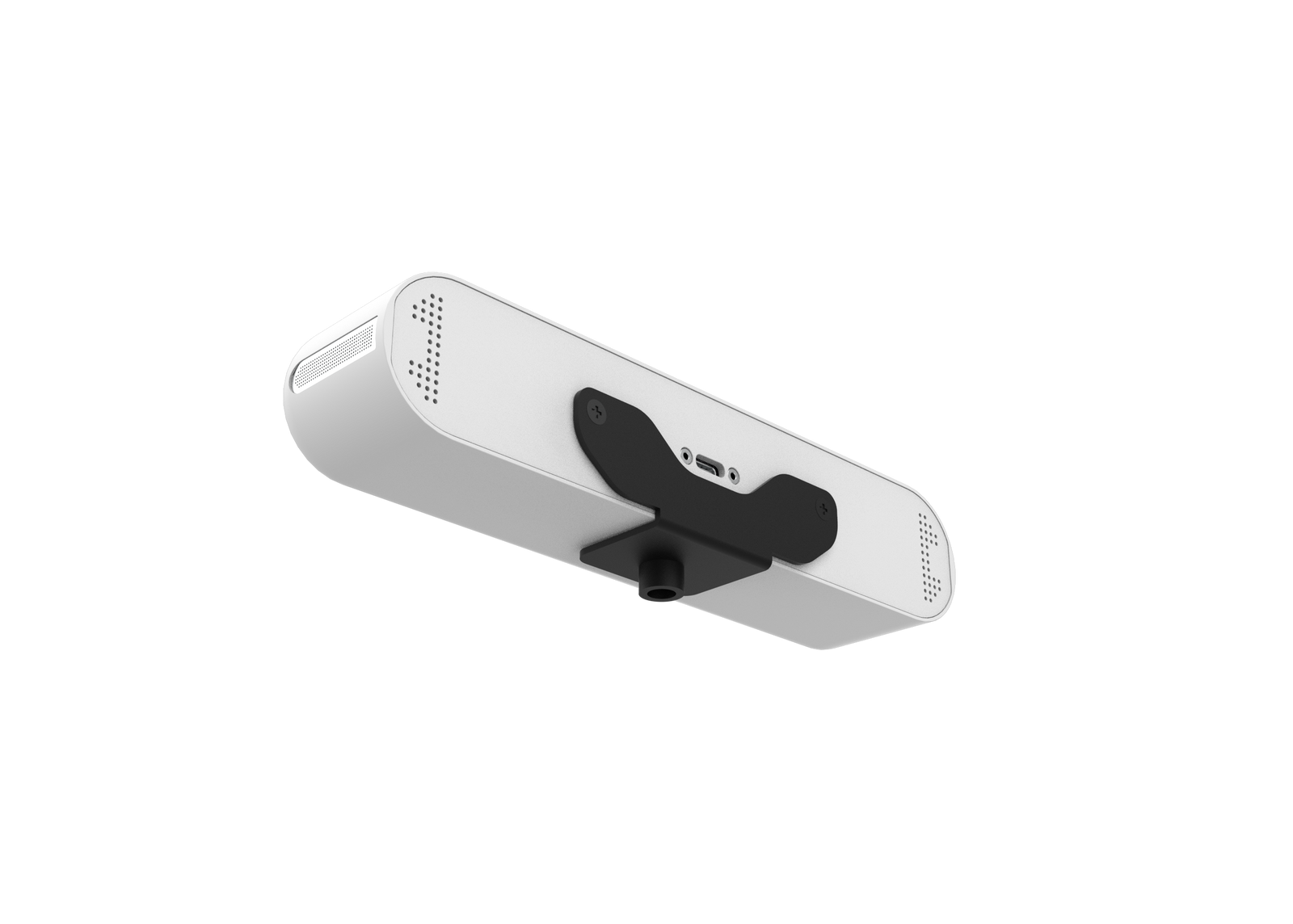

Installation Bottom ¼-20UNC

Astra+

● Active cooling for stable operation

● High quality depth data output from 0.6-8m

● Up to 30 fps at 640X480 for depth

● Up to 30 fps at 1920X1080 RGB resolution

● Support both USB 2.0/3.0 operation

Price
$164.99
Taxes and shipping calculated at checkout
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

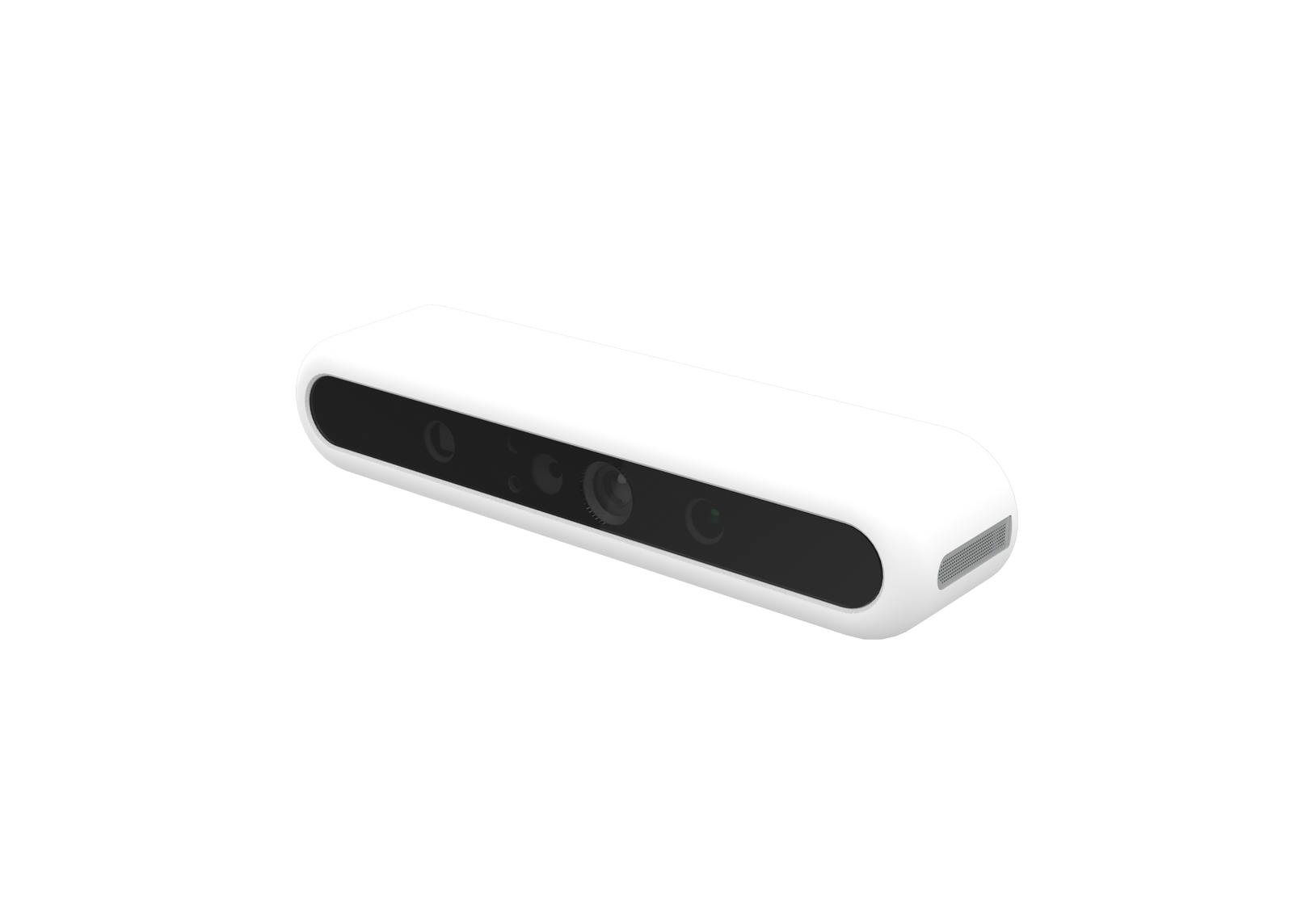

Astra+ is the successor to Orbbec’s successful Astra Series. Astra+ is based on structured light technology with Orbbec’s custom ASIC for high quality depth processing. With single cable power and data operation using USB 3.0, high resolution RGB and active cooling, Astra+ is ideal for any solution that requires stable and high quality data output. The Orbbec SDK makes it easy to setup and delivers highly accurate and reliable data for in-door operation.
