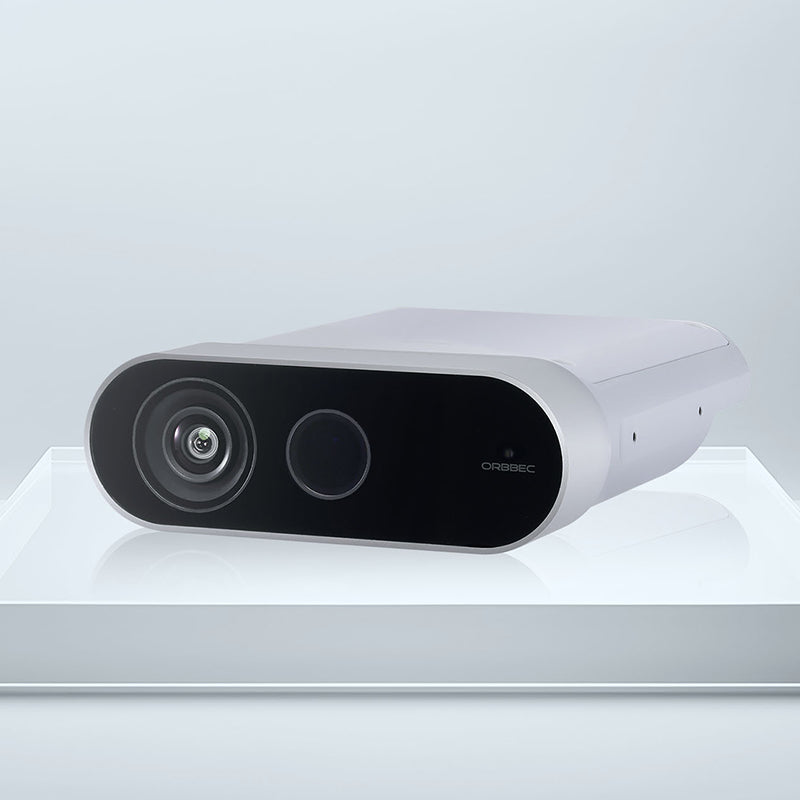

Angled promotional view of Orbbec Femto Mega 3D camera built on NVIDIA Jetson for real-time Ethernet streaming.
Angled promotional view of Orbbec Femto Mega 3D camera built on NVIDIA Jetson for real-time Ethernet streaming.

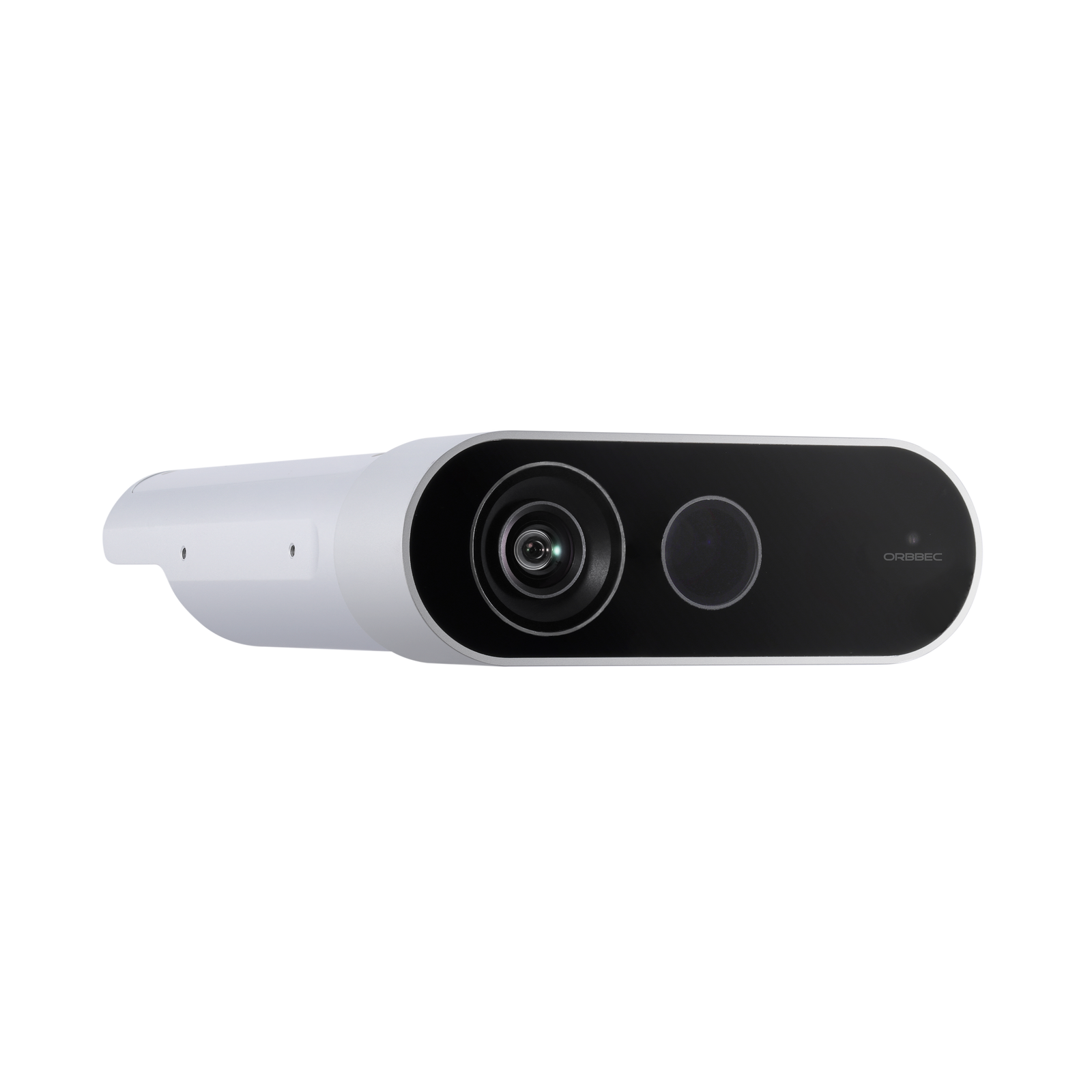

Left side view of Orbbec Femto Mega multi-mode depth camera, a fully compatible Microsoft Azure Kinect alternative.
Left side view of Orbbec Femto Mega multi-mode depth camera, a fully compatible Microsoft Azure Kinect alternative.

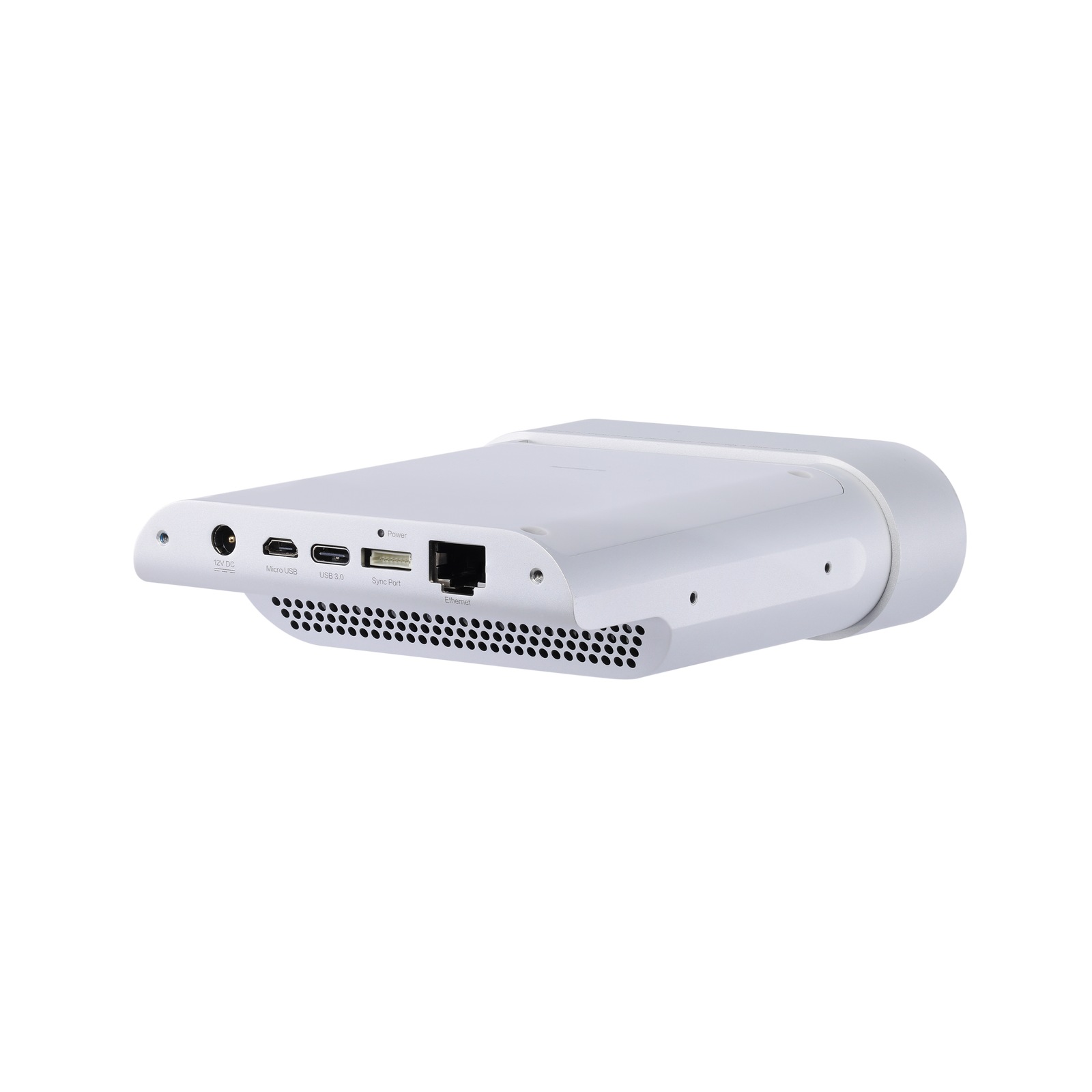

Rear view of Femto Mega 3D camera showing Ethernet PoE, 8-pin Sync Port, USB 3.0, and Micro USB interfaces.
Rear view of Femto Mega 3D camera showing Ethernet PoE, 8-pin Sync Port, USB 3.0, and Micro USB interfaces.

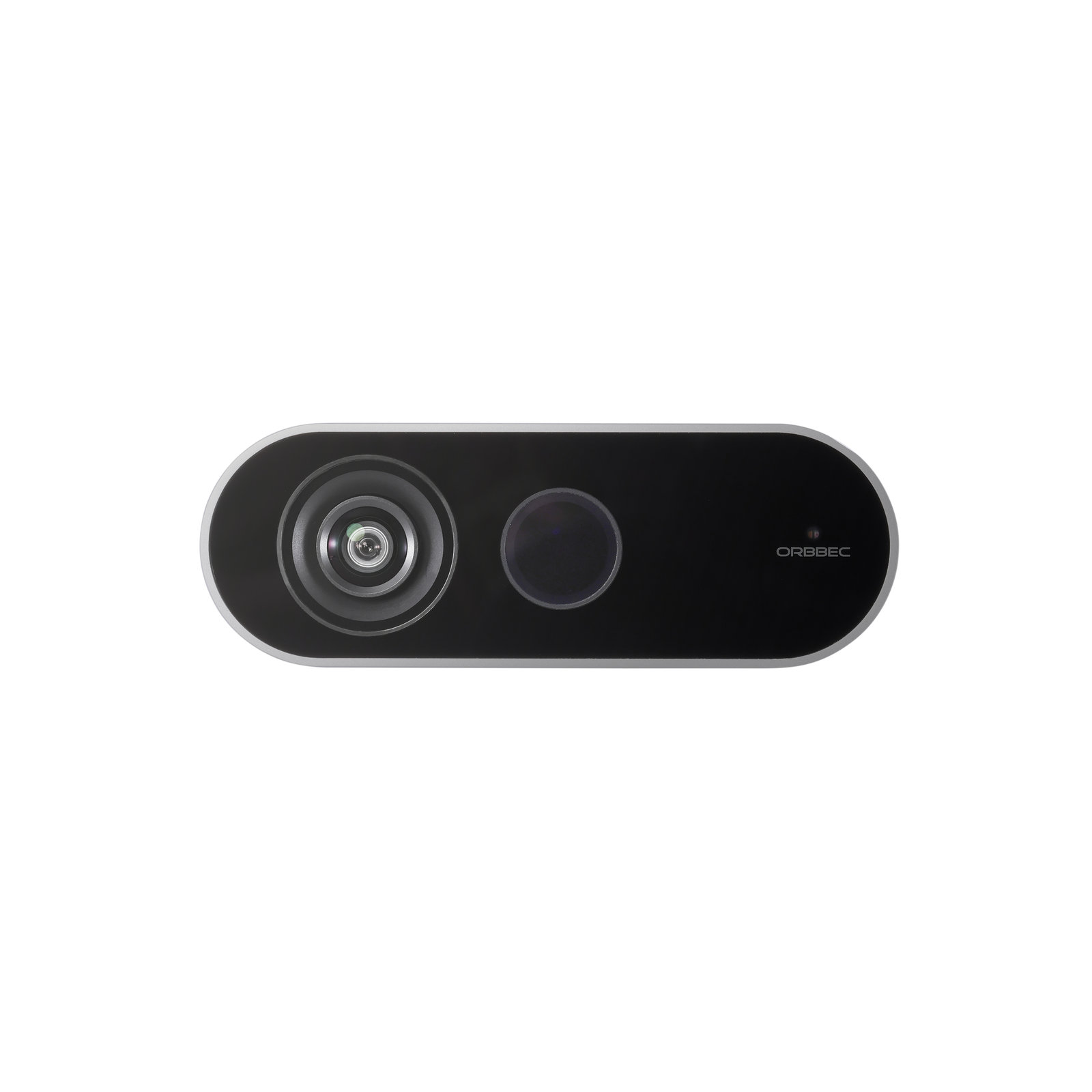

Front view of Orbbec Femto Mega 3D iToF camera built on NVIDIA Jetson platform with wide 120-degree FOV.
Front view of Orbbec Femto Mega 3D iToF camera built on NVIDIA Jetson platform with wide 120-degree FOV.
Click to open expanded view
Operating Environment 10℃ - 25℃; Indoor / Semi-outdoor
Depth Technology iToF
Depth Range 0.25-5.46m
Wavelength 850nm
Processor NVIDIA Jetson Nano
IMU Supported
SDK Orbbec SDK K4A Wrapper; Orbbec SDK V2
Spatial Precision <11 mm+0.1% distance
Depth FoV WFOV：120° x 120°; NFOV：75° x 65°
Depth Resolution and Frame Rate Up to：1024 x 1024@15fps
Depth Shutter Type Global Shutter
RGB FoV 80° x 51°
RGB Resolution and Frame Rate 3840*2160@15fps; 1920*1080@30fps
RGB Shutter Type Rolling Shutter
Power Input DC：12V / 2A; USB：5V / 3A; POE：802.3at（24W）
Power Consumption DC Power + USB data：11W; USB power + data：10W; POE power + Gigabit Ethernet data：13W
Data Output Point Cloud, Depth Map, IR & RGB
Connector USB 3.0 Type-C & Gigabit Ethernet
Protection N/A
Multi-device Sync port 8-pin
Weight 560g ± 3g
Dimensions (W*H*D) 115 x 40 x 145mm ±2mm
Installation 1x 1/4-20 UNC; 4x M2.5

Femto Mega

● Widest Field of View at up to 120° Horizontal and 120° Vertical

● Up to 15 fps at 1021X1024 or 30 fps at 640X576 depth resolution

● Up to 25 fps at 3840X2160 RGB resolution

● PoE, USB 3.0 and IMU supported

● Advanced and accurate sync trigger for multi-sensor network

Price
$695
Taxes and shipping calculated at checkout

What's Included:

● Femto Mega 3D Camera
● 12V 2A Power Adapter (US）
● USB-C to USB-A cable

Out of stock

Share this product

Share Post E-mail

Femto Mega is a next-generation iToF camera co-developed by Orbbec, Microsoft, and NVIDIA. This programmable multi-mode depth and RGB camera offers real-time streaming of processed images over Ethernet or USB connections. It utilizes Microsoft’s industry-proven ToF technology and the NVIDIA® Jetson™ platform to deliver a comprehensive depth and RGB vision solution without requiring additional processing power.
Femto Mega not only provides OrbbecSDK for enhanced PoE performance but also offers a fully compatible API interface with Microsoft Azure Kinect ecosystem applications. Migration documentation are provided for easy transition.
Femto Mega has achieved large-scale and stable mass production, meeting the needs of applications in logistics, robotic arms, manufacturing, retail, healthcare, and fitness.
