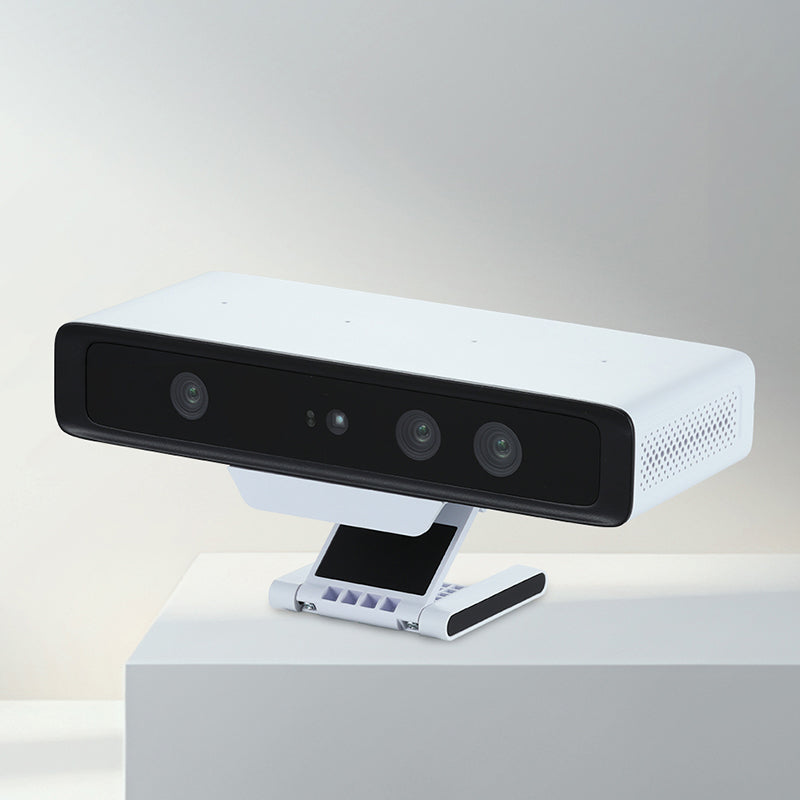

Angled product view of Orbbec Persee 2 3D smart camera powered by Amlogic A311D platform for edge AI computing.
Angled product view of Orbbec Persee 2 3D smart camera powered by Amlogic A311D platform for edge AI computing.

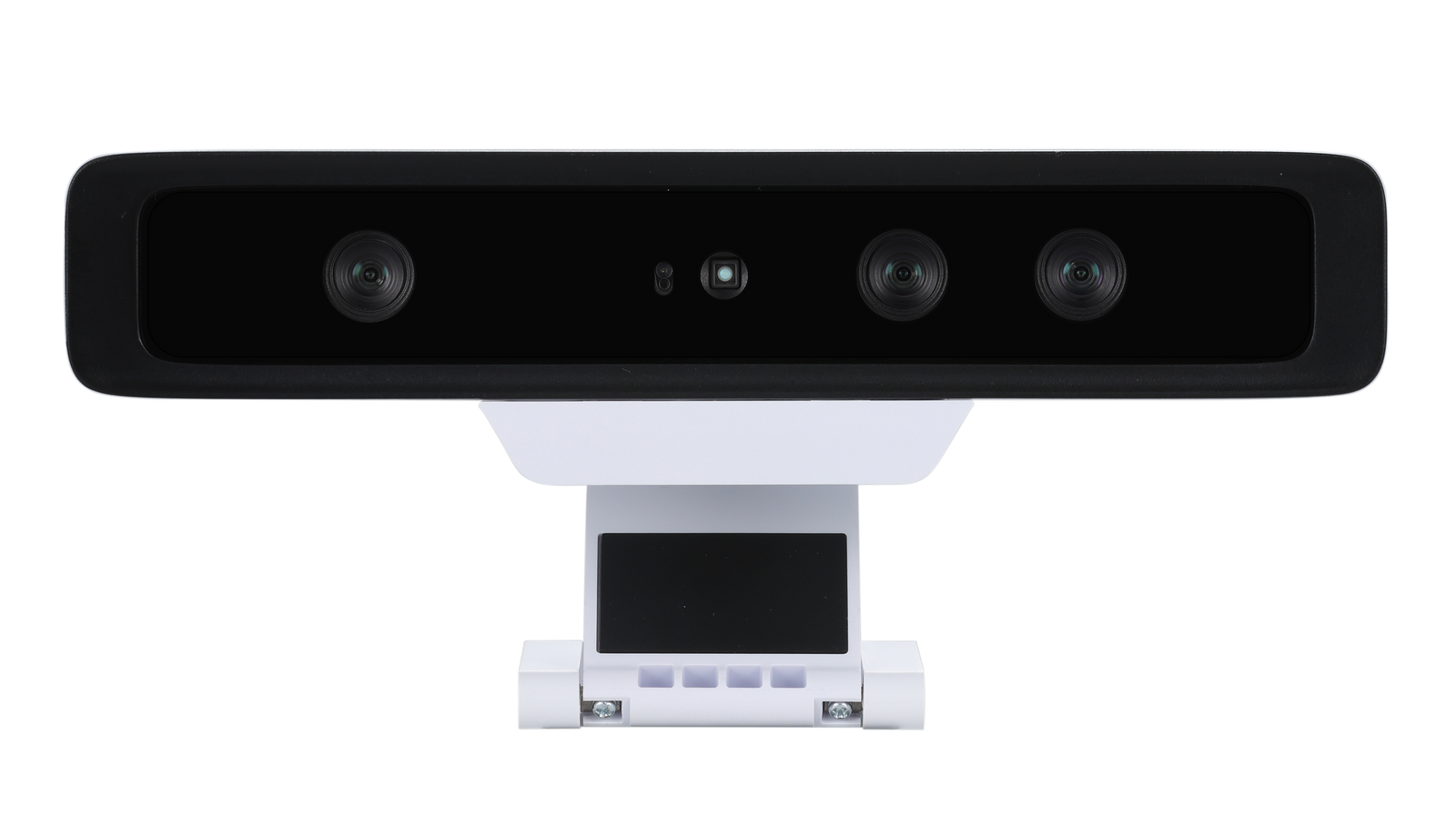

Front view of Persee 2 smart camera showcasing the active stereo IR sensors for accurate human skeleton tracking.
Front view of Persee 2 smart camera showcasing the active stereo IR sensors for accurate human skeleton tracking.

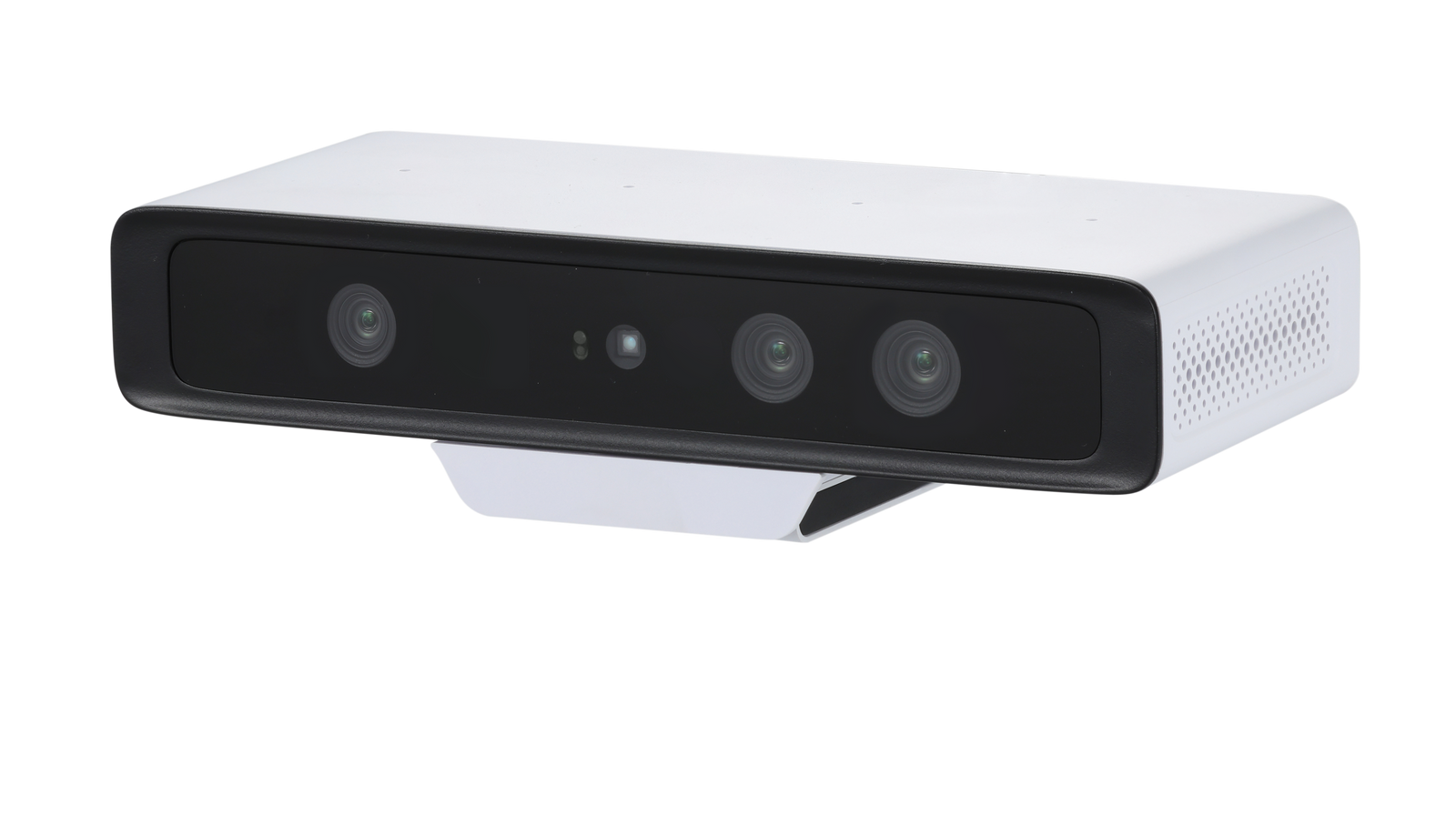

Angled view of Persee 2 3D camera with an integrated adjustable stand supporting 0.2-10m zero blind spot depth sensing.
Angled view of Persee 2 3D camera with an integrated adjustable stand supporting 0.2-10m zero blind spot depth sensing.

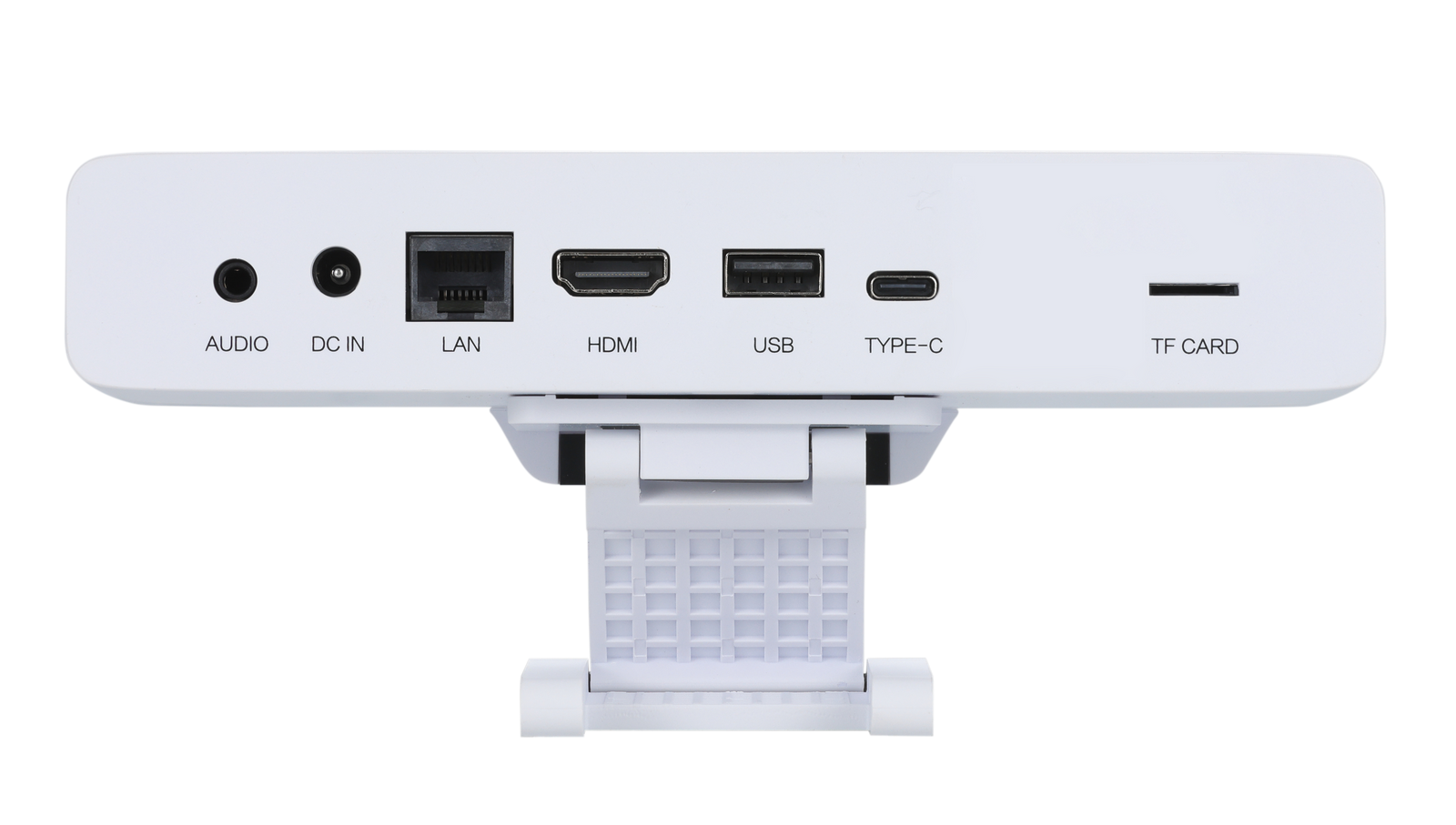

Rear panel view of Persee 2 detailing Audio, DC IN, LAN, HDMI, USB, TYPE-C, and TF CARD interface sockets.
Rear panel view of Persee 2 detailing Audio, DC IN, LAN, HDMI, USB, TYPE-C, and TF CARD interface sockets.

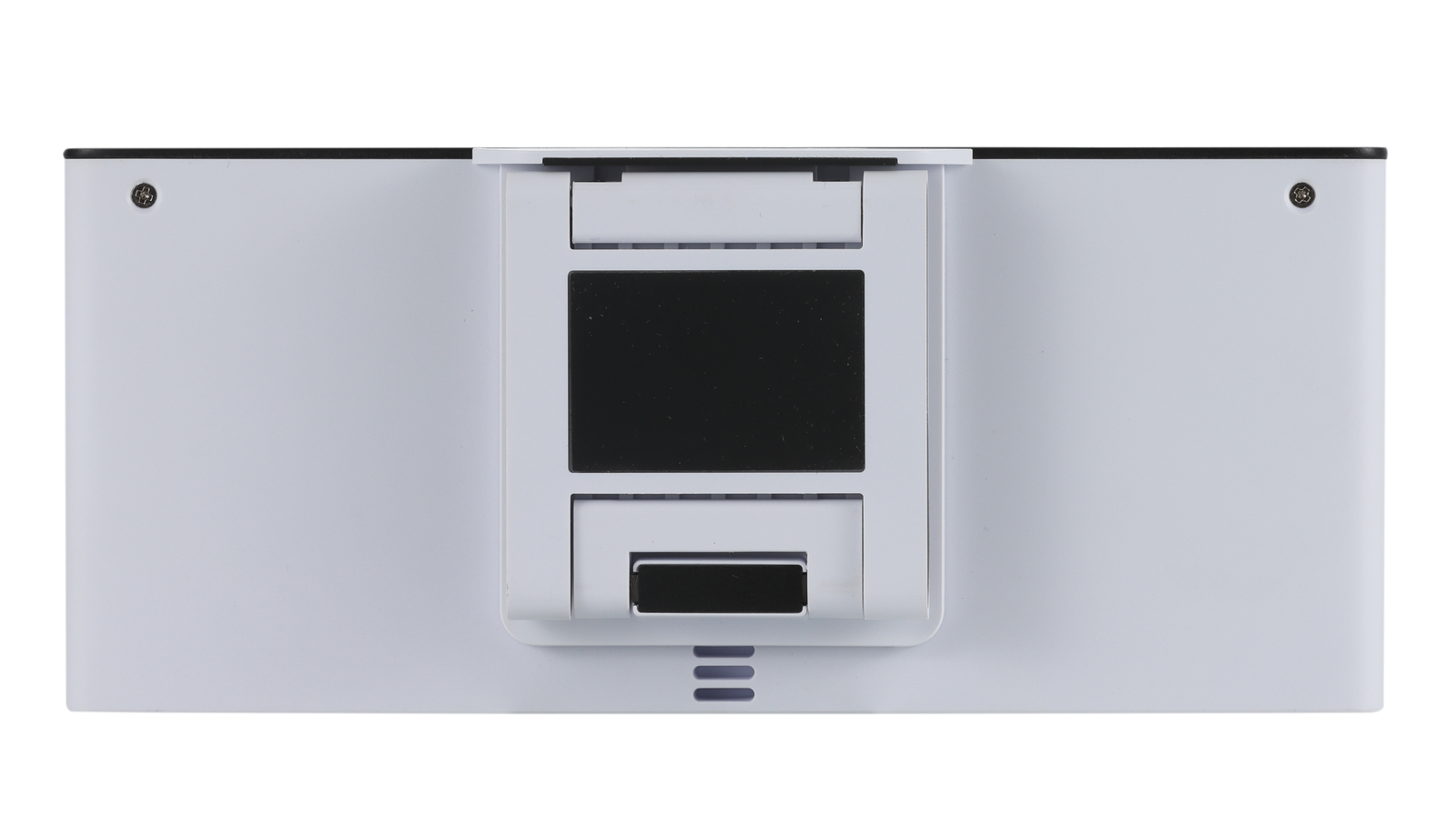

Bottom flat view of Persee 2 enclosure showcasing the foldable mounting bracket layout for stable deployment.
Bottom flat view of Persee 2 enclosure showcasing the foldable mounting bracket layout for stable deployment.
Click to open expanded view
Operating Environment 0℃ -35℃
Depth Technology Active Stereo IR
Depth Range 0.2-10m
Wavelength 850nm
Processor Amlogic A311D Quad Core A73+ Dual Core A53 with NPU
SDK Orbbec SDK; Built-In Android 9.0/Ubuntu 18.04
Depth FoV H91° V66°
Depth Resolution and Frame Rate Up to 1280X800@30fps; 640x400@60fps
RGB FoV 16：10 H93° V68°; 16：9 H93° V61°
RGB Resolution and Frame Rate Up to 1280x800@30fps; 1280x720@60fps
RAM/Storage 4GB
WiFi/BT 802.11a/b/g/n/ac, Bluetooth 5.0
Power Input Power Adapter (12V/2A)
Ports 3.5mm Audio, DC-IN, Gigabit Ethernet, HDMI Out, USB 2.0 Type-A, USB 2.0 Type-C, MicroSD Expansion Slot
Microphone 4 Microphone Linear Microphone Array
Power Consumption Average < 7W; Peak < 16.9W
Weight 352g
Dimensions (W*H*D) 180mm x 45mm x 76.5mm
Installation Bottom

Persee 2

All-in-One 3D Camera-Computer for Compact AI Edge Applications

  • All-in-One AI Edge Computing Features an integrated Amlogic A311D processor (Quad Core A73 and Dual Core A53 with NPU) to deliver powerful standalone 3D vision processing without a host PC.
  • Expansive 3D Depth Perception Captures active stereo depth from 0.2m to 10m with resolutions up to 1280x800 at 30fps and a wide H91° x V66° field of view.
  • Dual OS Support & Orbbec SDK Comes ready for rapid application development with native dual-system support for Android 9.0 and Ubuntu 18.04 operating systems.
  • Comprehensive I/O Connectivity Equipped with a 4-microphone linear array, RJ45 Gigabit Ethernet, HDMI 2.0, USB Type-C/Type-A, Wi-Fi, and Bluetooth 5.0 for highly versatile system integration.
  • Ultra-Compact Smart Design Weighing just 352g (180mm x 45mm x 76.5mm), this Class 1 laser product effortlessly integrates into interactive kiosks, healthcare monitors, and automated retail systems.
Frequently Asked Questions ▾
What is the Orbbec Persee 2 and what makes it an all-in-one solution? ▾
The Persee 2 is a camera computer that combines a high-performance depth camera with an embedded computer in a single device. It is based on active stereo technology with Orbbec's custom ASIC for high-quality depth processing, and it adds an Amlogic A311D processor with a high-performance GPU and NPU to run user applications on board. With Android and Linux support and a range of ports, it is designed as a low-cost, compact all-in-one solution.
What processor and operating systems does the Persee 2 use? ▾
The Persee 2 is built on the Amlogic A311D hexa-core processor (quad-core A73 plus dual-core A53) with an NPU, alongside the Orbbec ASIC for depth processing. It ships with 4GB of RAM and 32GB of storage and supports both Android 9.0 and Ubuntu 18.04, so developers can run applications directly on the device.
What depth performance does the Persee 2 provide? ▾
The Persee 2 uses active stereo IR technology and outputs high-quality depth data from 0.2 to 10m, with a spatial precision of 2% at 4m. Depth resolution reaches up to 1280x800 at 30fps and RGB up to 1280x800 at 30fps, with a depth field of view of 91 degrees horizontal by 66 degrees vertical. It also includes an IMU.
What ports and connectivity does the Persee 2 offer? ▾
The Persee 2 provides a wide range of interfaces, including USB 2.0 Type-A, USB 2.0 Type-C for debug and firmware update, Gigabit Ethernet, HDMI 2.0, a 3.5mm audio output, and a MicroSD expansion slot. It also has Wi-Fi (802.11a/b/g/n/ac) and Bluetooth 5.0, plus a 4-microphone linear array. Power is supplied via DC 12V/2A.
What are the physical characteristics and operating conditions of the Persee 2? ▾
The Persee 2 measures 180mm x 45mm x 76.5mm, weighs 352g, and mounts via a 1/4-20UNC thread. It is designed for indoor and semi-outdoor operation, with an operating range of 0 to 35 degrees Celsius and 5% to 95% relative humidity.
What are the typical applications for the Persee 2? ▾
The Persee 2 is used for dimensioning, providing accurate package measurements to improve logistics accuracy; interactive displays, adding immersive experiences to interactive and educational installations; fall prevention, using real-time monitoring to detect fall risk and alert in time; rehabilitation, where skeleton tracking supports personalized exercises; and people counting and customer engagement.
How does the Persee 2 differ from the Persee N1? ▾
The Persee 2 is built on the Amlogic A311D processor with an NPU and supports both Android and Linux, with built-in Wi-Fi, Bluetooth, and a microphone array in a compact 352g body. The Persee N1 instead pairs an Orbbec Gemini 2 camera with an NVIDIA Jetson Nano platform for edge AI and robotics, running Ubuntu with OpenCV. Choose the Persee 2 for a compact Android or Linux all-in-one, or the Persee N1 for Jetson-based AI development.
Price
$464
Taxes and shipping calculated at checkout

What's Included:

● Persee 2
● HDMI cable (1.5m)
● 12V 2A Power adapter (CN)
● IR remote control
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

Orbbec Persee 2: The Next-Generation 3D Camera-ComputerThe Orbbec Persee 2 is an advanced all-in-one 3D smart camera engineered to combine high-accuracy depth perception with onboard edge AI computing. Powered by the high-performance Amlogic A311D processor—which includes a Quad Core A73, Dual Core A53, and a dedicated NPU—the Persee 2 operates as a completely standalone unit. By eliminating the need for an external host PC, this architecture allows developers and enterprise clients to rapidly build and validate complex spatial computing applications directly on the edge.

High-Resolution Depth & Zero Blind Spot NavigationDesigned to capture expansive indoor environments, the Persee 2 delivers reliable depth measurements across a versatile operating range of 0.2 to 10 meters. It outputs high-density depth streams up to 1280x800 at 30fps (or 640x400 at 60fps), featuring a broad depth field of view spanning H91° by V66°. This exceptional 3D perception is perfectly synchronized with a high-definition RGB camera supporting up to 1280x800 at 30fps, ensuring that motion tracking, skeleton mapping, and object recognition remain flawlessly aligned in both space and time.

Built for Seamless System IntegrationHoused in a compact 352g chassis measuring 180mm x 45mm x 76.5mm, the Persee 2 is a certified Class 1 Laser Product built for safe and easy deployment in public and commercial spaces. It offers exceptional software flexibility with native support for both Android 9.0 and Ubuntu 18.04, supported by 4GB of RAM, 32GB of eMMC storage, and MicroSD expansion up to 128GB. With an extensive array of onboard interfaces—including a 4-microphone linear array, RJ45 Gigabit Ethernet, HDMI 2.0, USB 2.0 Type-C, and Wi-Fi with Bluetooth 5.0—the Persee 2 serves as the ultimate hardware foundation for healthcare rehabilitation, fall prevention monitoring, and retail dimensioning systems.
