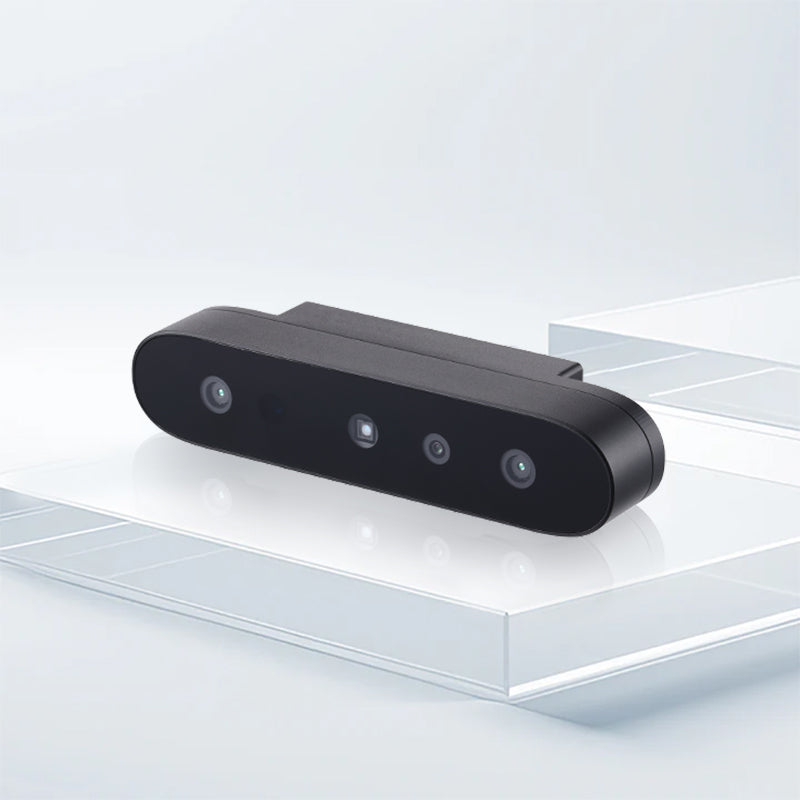

Angled view of Orbbec Gemini 215 3D camera powered by custom ASIC MX6600 for detailed object scanning.
Angled view of Orbbec Gemini 215 3D camera powered by custom ASIC MX6600 for detailed object scanning.

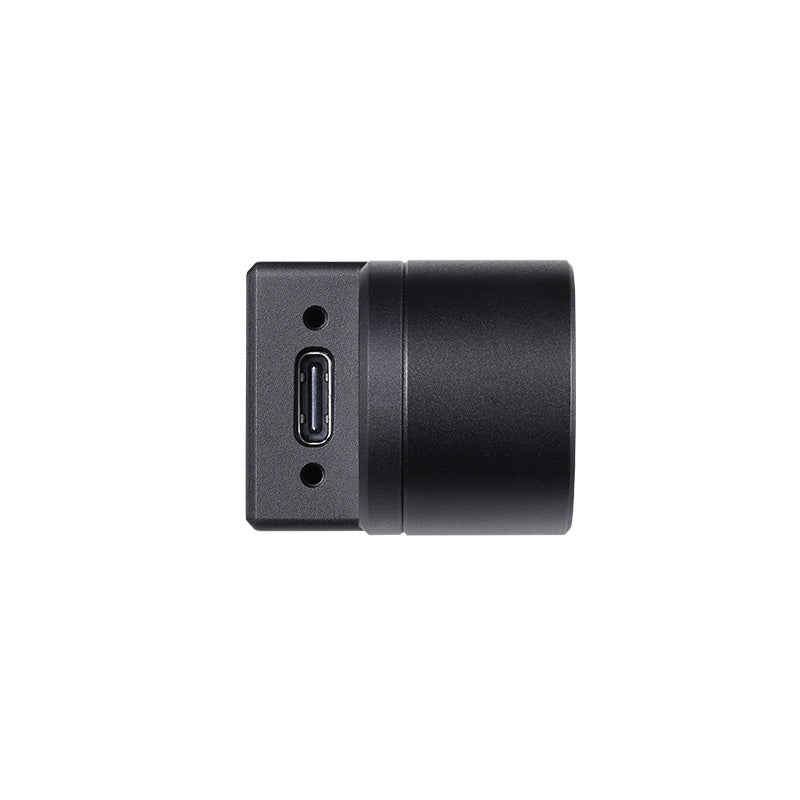

Side profile photo of Gemini 215 enclosure detailing the USB Type-C power input and dual installation holes.
Side profile photo of Gemini 215 enclosure detailing the USB Type-C power input and dual installation holes.

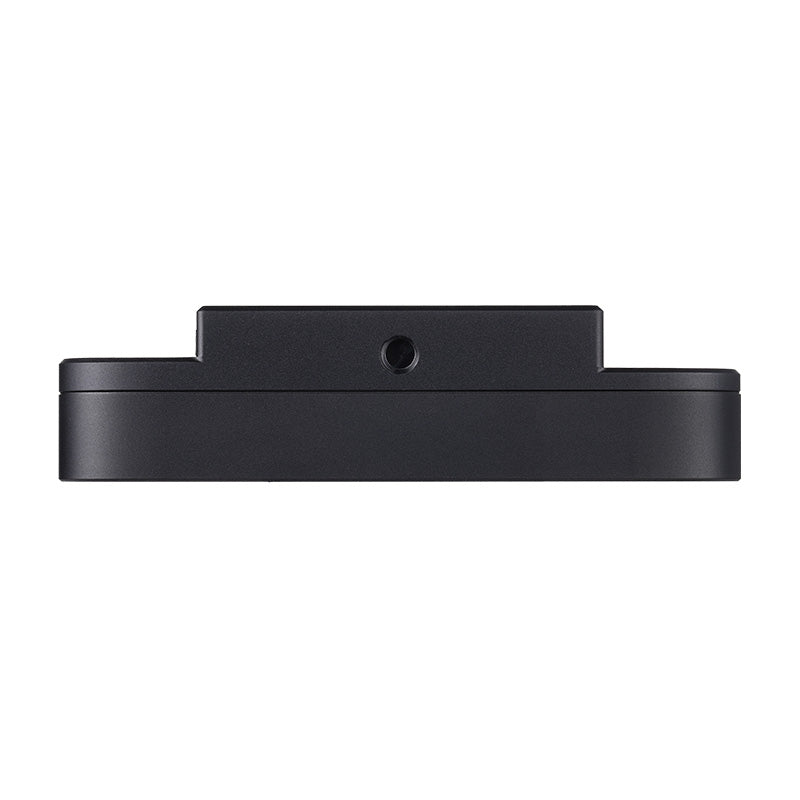

Bottom flat view of Orbbec Gemini 215 casing showcasing the 1/4-20 UNC thread for standard tripod installation.
Bottom flat view of Orbbec Gemini 215 casing showcasing the 1/4-20 UNC thread for standard tripod installation.

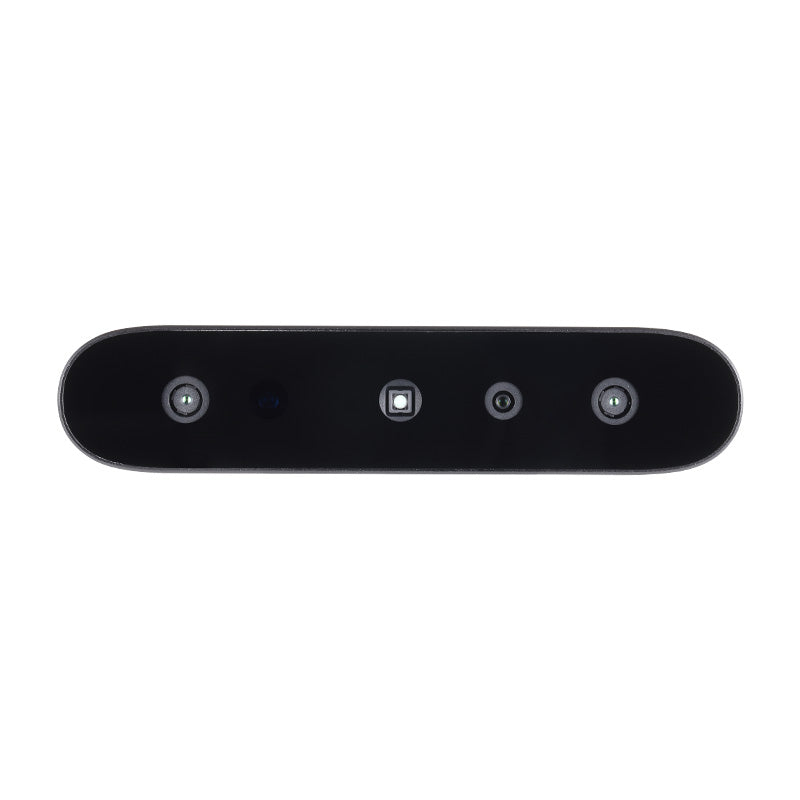

Front flat view of Gemini 215 stereo vision camera supporting high-precision short-range body part scanning.
Front flat view of Gemini 215 stereo vision camera supporting high-precision short-range body part scanning.

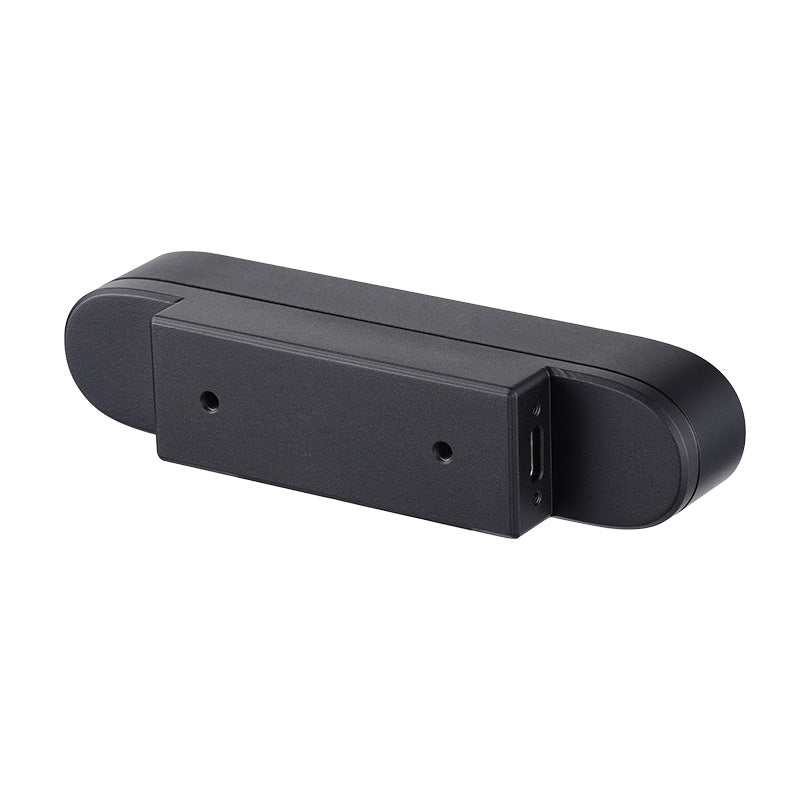

Rear angled view of Gemini 215 depth sensor displaying the two M3 back mounting threads for stable deployment.
Rear angled view of Gemini 215 depth sensor displaying the two M3 back mounting threads for stable deployment.

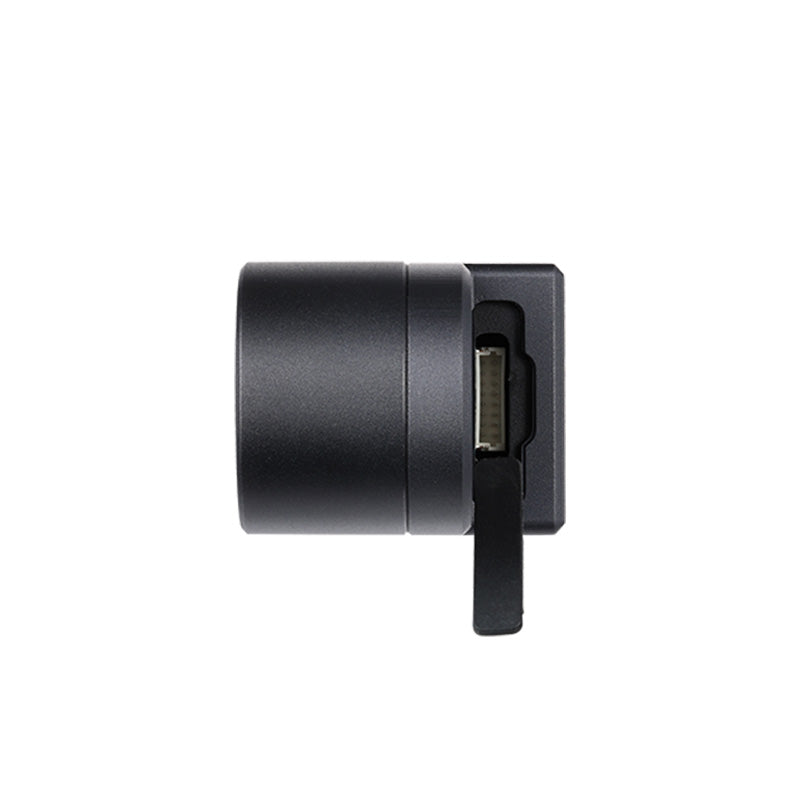

Opposite side profile of Gemini 215 module showcasing the 8-pin Sync Port for high-precision multi-device synchronization.
Opposite side profile of Gemini 215 module showcasing the 8-pin Sync Port for high-precision multi-device synchronization.
Click to open expanded view
Model G20000-150
Depth Technology Stereo Vision
Wavelength 850nm
Depth Range 0.15 - 0.70m
Depth Resolution/FPS Up to 1280 × 800 @ 30fps
Depth FoV H63.0° x V44.8° @ 0.7m
RGB Resolution/FPS Up to 1920 × 1080 @ 30fps
RGB FoV H74.7° x V46.2°
Processing Orbbec ASIC
Capture Rate Up to 30fps
Capture Zone H126mm x V124mm @ 0.15m; H859mm x V577mm @ 0.7m
Depth Filter IR-Pass
IMU 6 DoF; three-axis linear acceleration, and three-axis angular acceleration
Sync Function Trigger 8-Pin
Power Consumption Average < 2.5W; Peak < 7.0W
Operating Environment Indoor
SDK Support Orbbec SDK v2 (Open-source)
Dimensions (W*H*D) 120 mm x 26 mm x 30 mm
Weight 105g
Installation Bottom 1 x 1/4-20 UNC ; Back 2 x M3
*Spatial Precision < 0.5 mm(1280 X 800 @ 0.3m); < 1.5 mm(1280 X 800 @ 0.6m)
*Theorectical maximum depth range up to 65 meters * Minimum Point Distance/Resolution 0.16mm @ 0.15m

Gemini 215

High-Precision Short-Range 3D Scanner for Body and Object Scanning

  • Sub-Millimeter 3D Accuracy Achieves spatial precision of <0.5mm at 0.3m across a specialized 0.15m to 0.7m short-range depth sensing envelope.
  • High-Resolution ASIC Processing Powered by the custom MX6600 ASIC to deliver 1280x800 global-shutter depth at 30fps with an ultra-fine 0.16mm 3D point resolution at 0.15m.
  • Synchronized RGB-D Seamlessly aligns active stereo depth (63.0°×44.8° FOV at 0.7m) with 1080p rolling-shutter RGB (74.7°×46.2° FOV) for detailed indoor scanning and modeling.
  • Compact Form & Hardware Sync Enclosed in a lightweight 105g frame (120 × 26 × 30 mm), it integrates a 6-DoF IMU and supports hardware multi-camera synchronization to expand coverage.
  • Plug-and-Play Efficiency Operates via a single USB 3.0 Type-C connection for data and power, maintaining a low average power consumption of <2.5W, and is fully supported by the cross-platform Orbbec SDK.
Frequently Asked Questions ▾
What is the Orbbec Gemini 215 and what is it designed for? ▾
The Gemini 215 is a member of Orbbec's Gemini stereo vision series designed specifically for high-precision, short-range, detailed 3D scanning, such as body part and object scanning. Powered by Orbbec's custom MX6600 ASIC and a high-performance optical system, it excels at short-range indoor scanning and delivers accurate, real-time depth images with fine detail. It uses active stereo technology, which enables reliable indoor scanning even on textureless surfaces.
What accuracy and resolution does the Gemini 215 provide? ▾
The Gemini 215 captures depth data with a spatial precision of 0.5mm or better at 300mm and 1.5mm or better at 600mm, and it achieves a minimum point cloud resolution of 0.16mm at 0.15m. Depth resolution reaches up to 1280x800 at 30fps and RGB up to 1920x1080 at 30fps. This high level of detail supports accurate 3D model reconstruction.
What is the working distance of the Gemini 215? ▾
The Gemini 215 operates at short range from 0.15 to 0.70m, with an ideal range of 0.2 to 0.5m. It offers a Close-Up Precision Mode covering 0.15 to 0.30m and an Extended Distance Mode covering 0.20 to 0.70m, so it can be tuned to the scanning task. Real-time processing up to 1280x800 at 30fps enables smooth capture without motion blur or lag.
Is the Gemini 215 safe for scanning people? ▾
Yes. The Gemini 215 uses a Class 1 laser, which is safe for the eyes, and scanning is imperceptible during use. This makes it appropriate for close-range scanning of human body parts such as the face, feet, hands, and head, in addition to objects such as sculptures and other artistic pieces.
How does the Gemini 215 connect and what are its physical characteristics? ▾
The Gemini 215 connects over USB 3.0 and USB 2.0, with USB Type-C power input. Average power consumption is under 2.5W with a maximum under 7.0W. On-chip depth processing reduces latency and removes the need for external computing power. The camera measures 120mm x 26mm x 30mm with a 75mm baseline, weighs about 105g, includes an IMU, and outputs point cloud, depth, IR, and RGB data.
What software and synchronization does the Gemini 215 support? ▾
The Gemini 215 is supported by the open-source Orbbec SDK v2, which runs on Windows and Linux for fast, flexible, and scalable development. It supports multi-device synchronization to expand the field of view for larger scanning setups. Its operating environment is 0 to 40 degrees Celsius for indoor use.
How is the Gemini 215 different from Orbbec's Gemini 330 series cameras? ▾
The Gemini 215 is a short-range, high-precision scanner built on the MX6600 ASIC for detailed body and object scanning at distances up to 0.70m, with sub-millimeter accuracy and indoor-only operation. The Gemini 330 series cameras, by contrast, are built on the MX6800 ASIC for longer-range robotics perception in indoor and outdoor environments. Choose the Gemini 215 when fine detail at close range is the priority.
Price
$218
Taxes and shipping calculated at checkout

What's Included:

● Gemini 215 3D Camera
● USB-C to USB-A cable
● Tripod
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

Orbbec Gemini 215: High-Precision Short-Range 3D ScannerThe Orbbec Gemini 215 is an active stereo 3D camera specifically engineered for high-precision, short-range indoor scanning applications. Enclosed in a compact 105g housing (120 x 26 x 30 mm), this camera features a 75mm baseline and an 850nm Laser Diode Module (LDM) to project static infrared patterns, ensuring reliable depth perception even in challenging environments.

Unmatched Close-Range DetailAt its core, the custom Orbbec MX6600 ASIC processes depth on-chip, outputting 1280x800 global-shutter depth streams at 30fps. It delivers exceptional 3D fidelity with a spatial precision of <0.5mm at 0.3m and a minimum point resolution of 0.16mm at 0.15m. The optical system effectively covers an operating range from 0.15m to 0.7m, perfectly synchronized with a 1920x1080 rolling-shutter RGB camera at 30fps via hardware-level Depth-to-Color (D2C) spatial alignment.

Built for Seamless IntegrationEngineered for seamless multi-sensor scalability, the Gemini 215 integrates a 6-DoF IMU and supports hardware timestamps alongside robust multi-camera synchronization. It connects effortlessly via a single USB 3.0 Type-C interface for both data transmission and power, maintaining an energy-efficient average power consumption of under 2.5W. Fully backed by the open-source Orbbec SDK, the Gemini 215 enables rapid and flexible project implementation across Windows, Ubuntu, and Android platforms.
