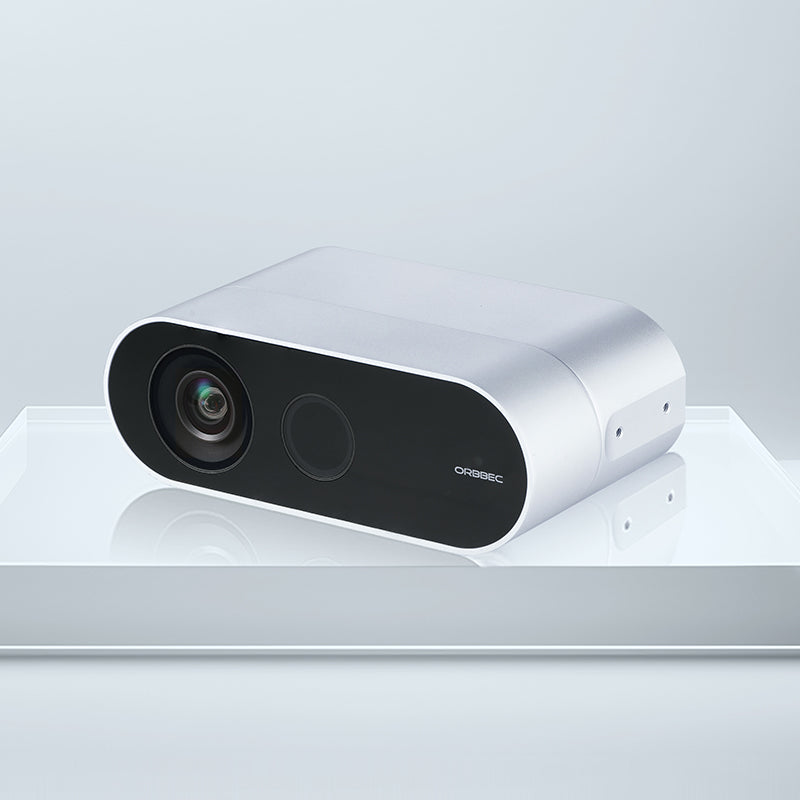

Angled promotional view of compact Orbbec Femto Bolt iToF camera, a recommended Azure Kinect alternative.
Angled promotional view of compact Orbbec Femto Bolt iToF camera, a recommended Azure Kinect alternative.

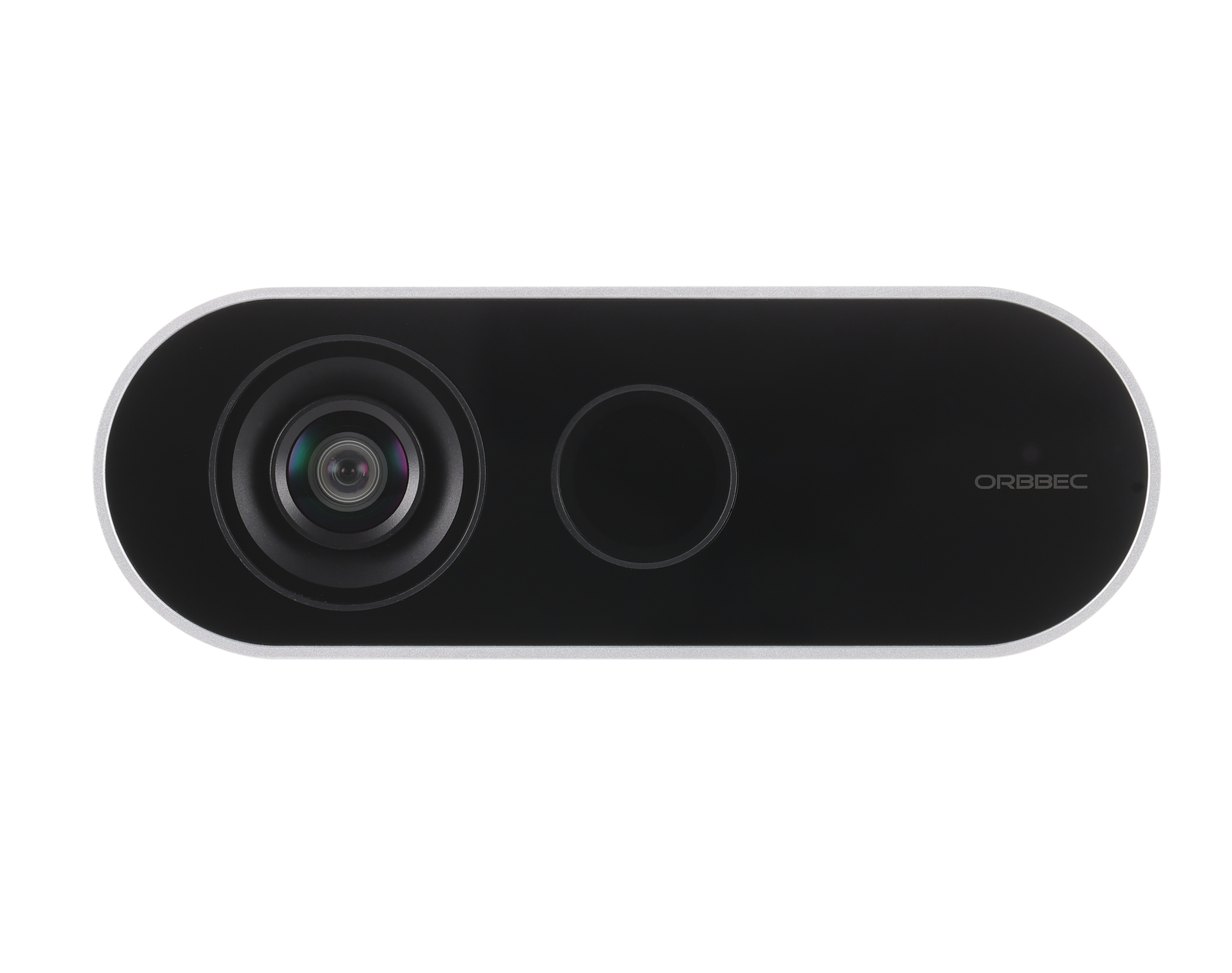

Close-up front view of Orbbec Femto Bolt 3D camera lens array, featuring a wide 120-degree FOV for AI vision development.
Close-up front view of Orbbec Femto Bolt 3D camera lens array, featuring a wide 120-degree FOV for AI vision development.

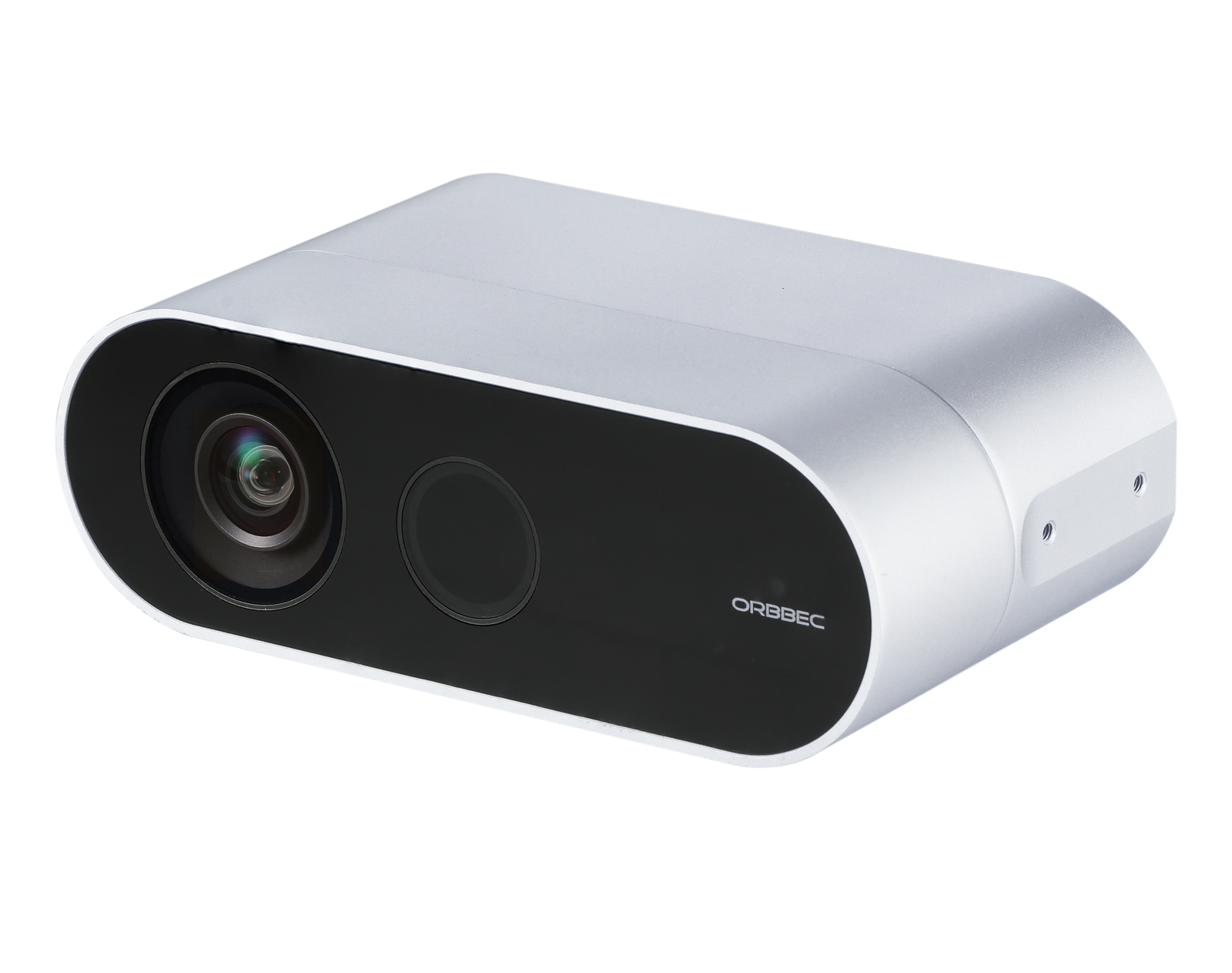

Angled promotional view of Orbbec Femto Bolt 3D camera on a sleek platform, a Microsoft-recommended alternative to Azure Kinect.
Angled promotional view of Orbbec Femto Bolt 3D camera on a sleek platform, a Microsoft-recommended alternative to Azure Kinect.

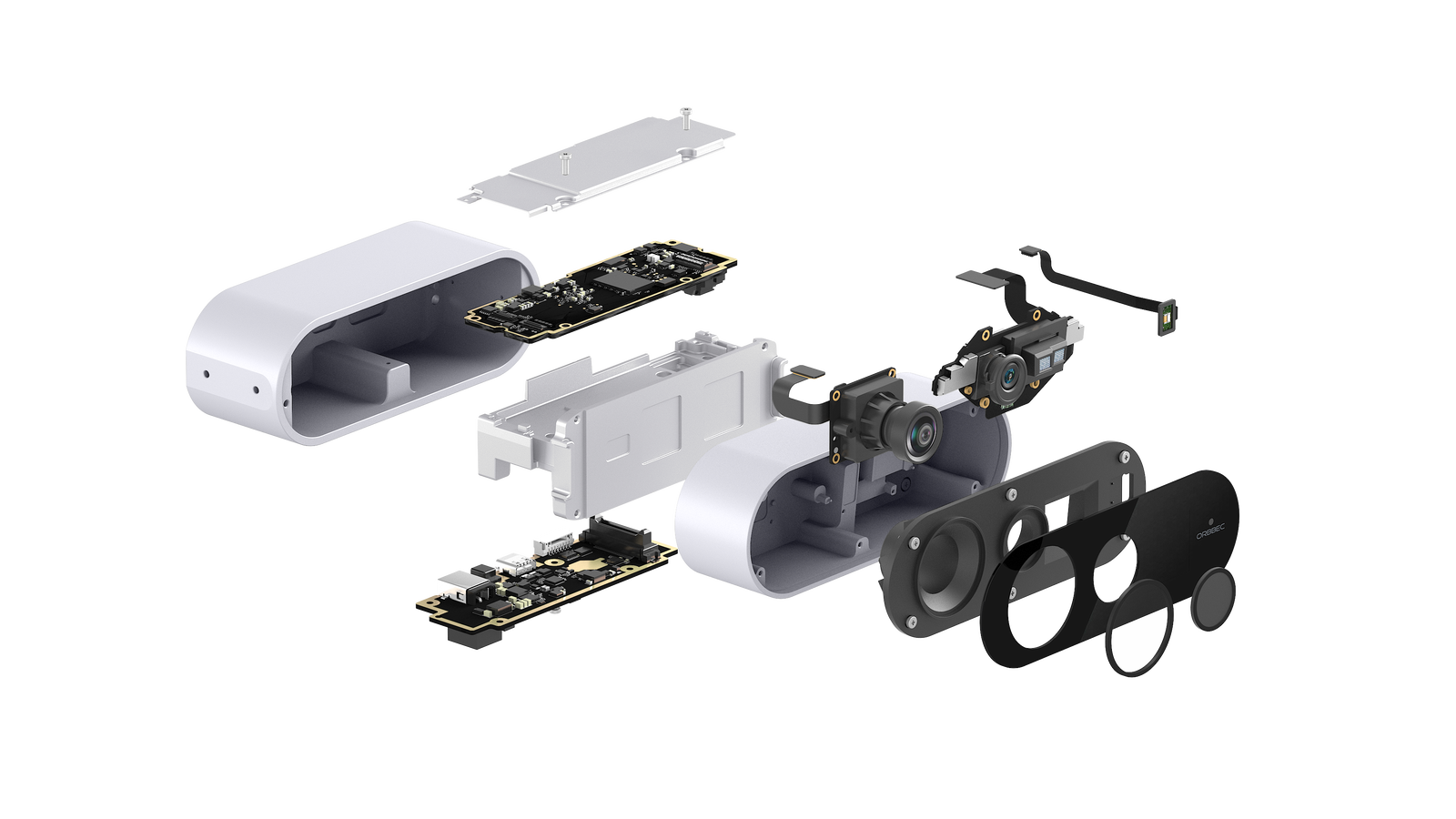

Exploded view of the Orbbec Femto Bolt 3D camera components, showcasing the high-performance iToF hardware co-developed with Microsoft.
Exploded view of the Orbbec Femto Bolt 3D camera components, showcasing the high-performance iToF hardware co-developed with Microsoft.
Rear view of Orbbec Femto Bolt showcasing USB-C, Sync Port, and Power Jack for multi-camera hardware synchronization.
Rear view of Orbbec Femto Bolt showcasing USB-C, Sync Port, and Power Jack for multi-camera hardware synchronization.
Click to open expanded view
Operating Environment 10℃ - 25℃; Indoor / Semi-outdoor
Depth Technology iToF
Depth Range 0.25-5.46m（depending on depth mode）
Wavelength 850nm
Processor Host computer
IMU Supported
SDK Orbbec SDK K4A Wrapper; Orbbec SDK V2
Spatial Precision Depth Accuracy (Systematic Error) < 11 mm + 0.1% of distance; Depth Precision (Random Error, Std. Dev.) ≤ 17 mm
Depth FoV WFOV：120° x 120°; NFOV：75° x 65°
Depth Resolution and Frame Rate Up to ： 1024 x 1024@15fps
Depth Shutter Type Global Shutter
RGB FoV 80° x 51°
RGB Resolution and Frame Rate Up to ：3840 x 2160@30fps
RGB Shutter Type Rolling Shutter
Power Input DC：12V / 2A; USB：5V / 3A
Power Consumption DC Power + USB data：4.7W; USB power + data：4.3W
Data Output Point Cloud, Depth Map, IR & RGB
Connector USB 3.0 Type-C
Protection N/A
Multi-device Sync port 8-pin
Weight 348g ± 3g
Dimensions (W*H*D) 115 × 40 × 65mm ± 2mm
Installation 1x 1/4-20 UNC ; 4x M2.5

Femto Bolt

Microsoft-Recommended Alternative to Azure Kinect DK

  • Depth camera with 1 Mega Pixel ToF sensor and 120° FOV
  • Up to 15fps at 1024x1024 or 30fps at 640x576 depth resolution
  • 4K RGB with HDR
  • 6DoF IMU
  • USB Type-C 3.2 for power and data
  • Sophisticated and accurate synchronization trigger control for multi-sensor network
Price
$418
Taxes and shipping calculated at checkout

What's Included:

● Femto Bolt 3D Camera
● 12V 2A Power Adapter (Interchangeable Connector: US / EU)
● USB-C to USB-A cable

Out of stock

Share this product

Share Post E-mail

Femto Bolt is a compact, high-performance iToF 3D camera co-developed by Orbbec and Microsoft. It integrates multiple sensing capabilities, including a multi-mode depth camera, color video camera, and inertial sensor. Utilizing Microsoft’s industry-proven ToF technology, the depth camera offers identical operating modes and performance to the Microsoft Azure Kinect and Orbbec Femto Mega.
The Femto Bolt supports simultaneous data transmission and power supply through a single USB Type-C connection. Its versatility and competitive pricing make it an attractive option for AI developers working on 3D vision applications.
