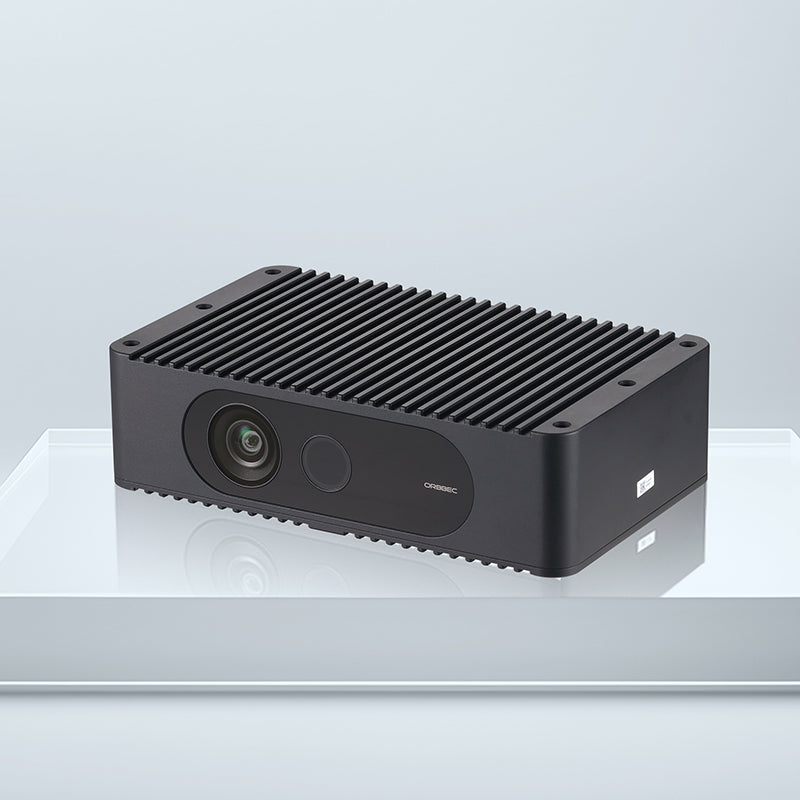

Angled promotional view of industrial Orbbec Femto Mega I 3D camera featuring an IP65 water and dustproof rugged housing.
Angled promotional view of industrial Orbbec Femto Mega I 3D camera featuring an IP65 water and dustproof rugged housing.

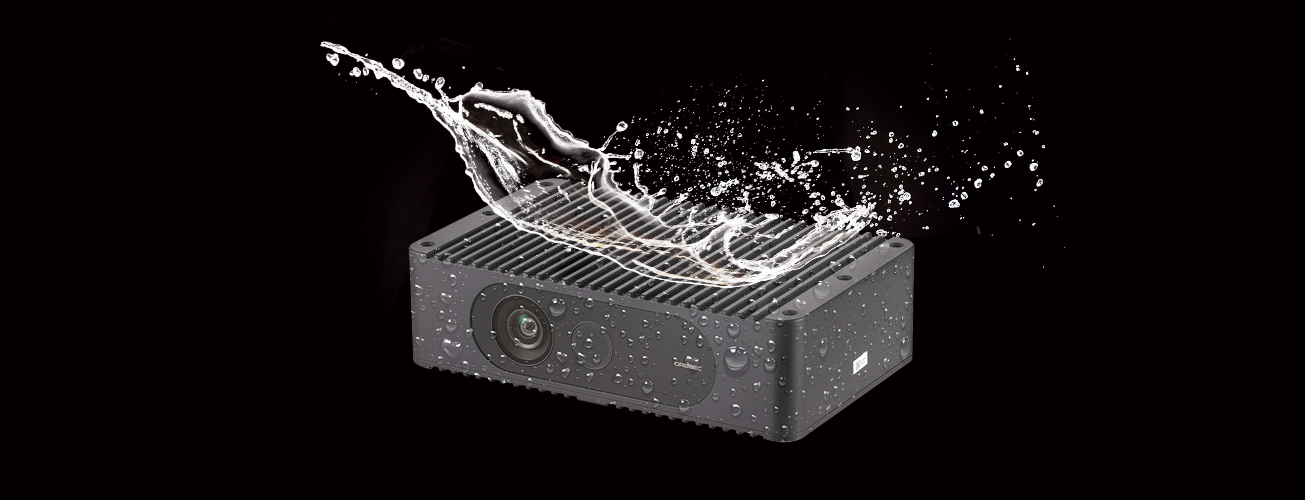

Water splash action view of Orbbec Femto Mega I demonstrating its rugged dustproof and waterproof capability.
Water splash action view of Orbbec Femto Mega I demonstrating its rugged dustproof and waterproof capability.

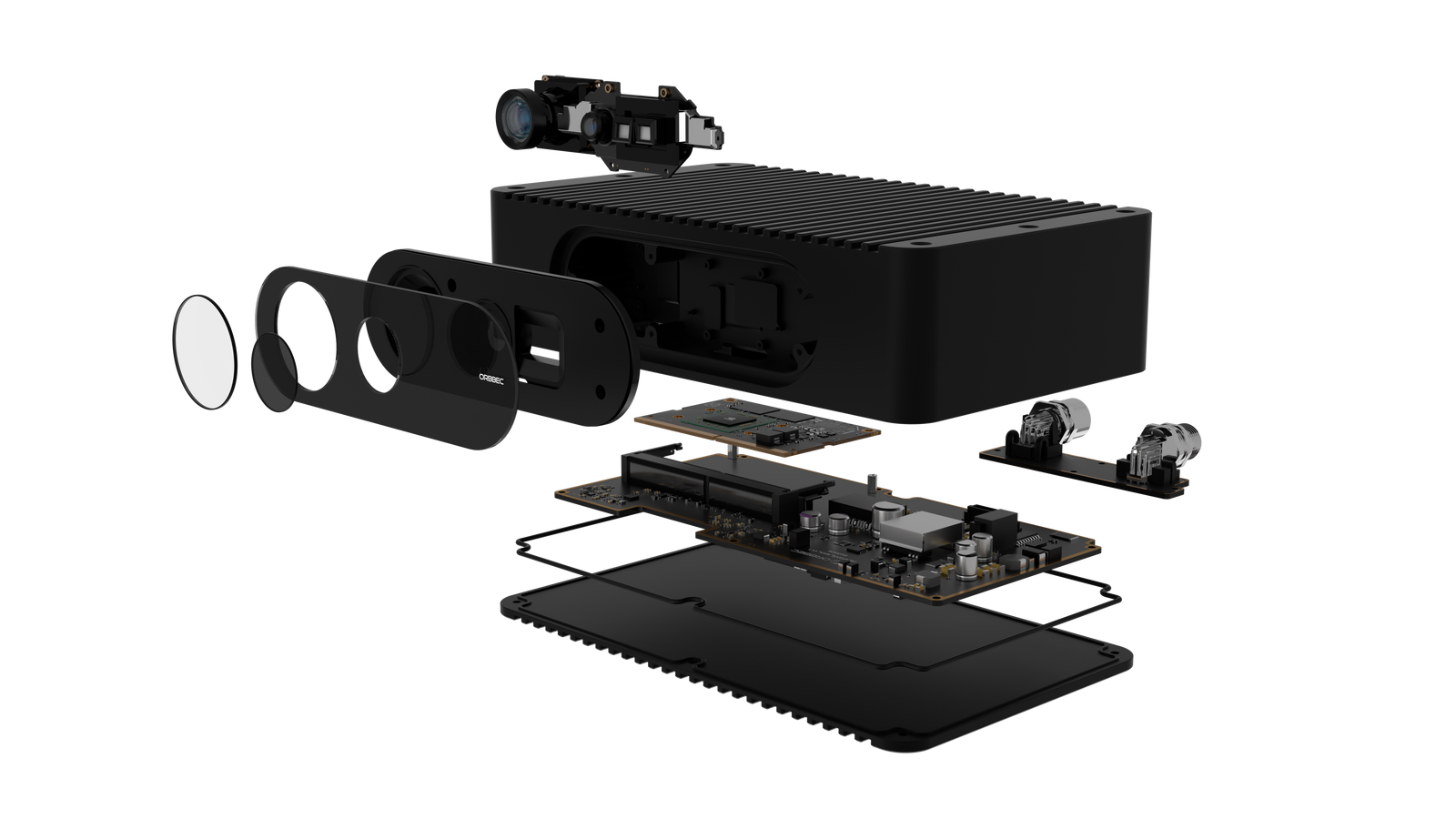

Exploded view of Femto Mega I components highlighting high-performance optical module and industrial casing setup.
Exploded view of Femto Mega I components highlighting high-performance optical module and industrial casing setup.

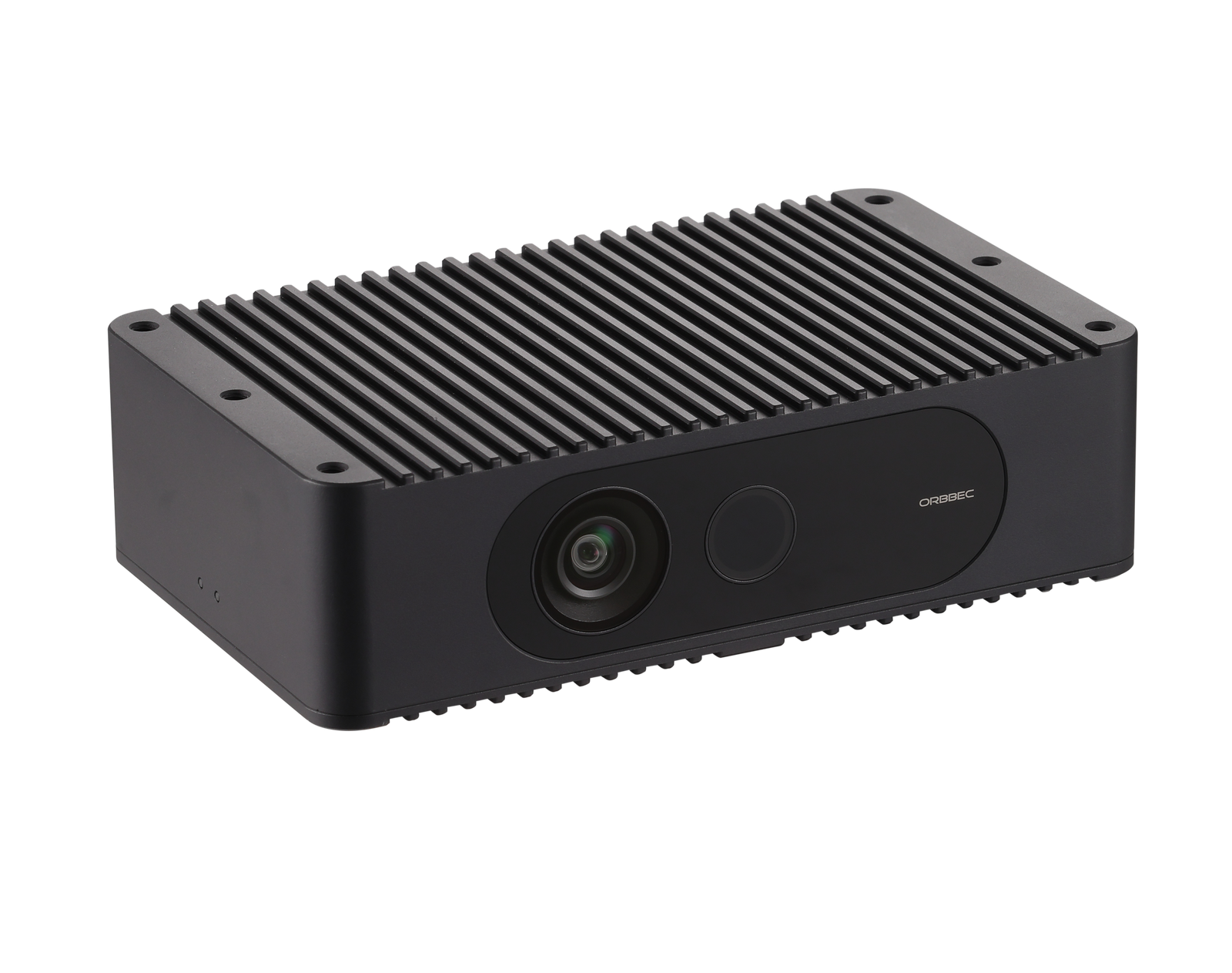

Left side view of Femto Mega I 3D camera supporting M12 X-coding Ethernet with PoE for warehouse logistics automation.
Left side view of Femto Mega I 3D camera supporting M12 X-coding Ethernet with PoE for warehouse logistics automation.

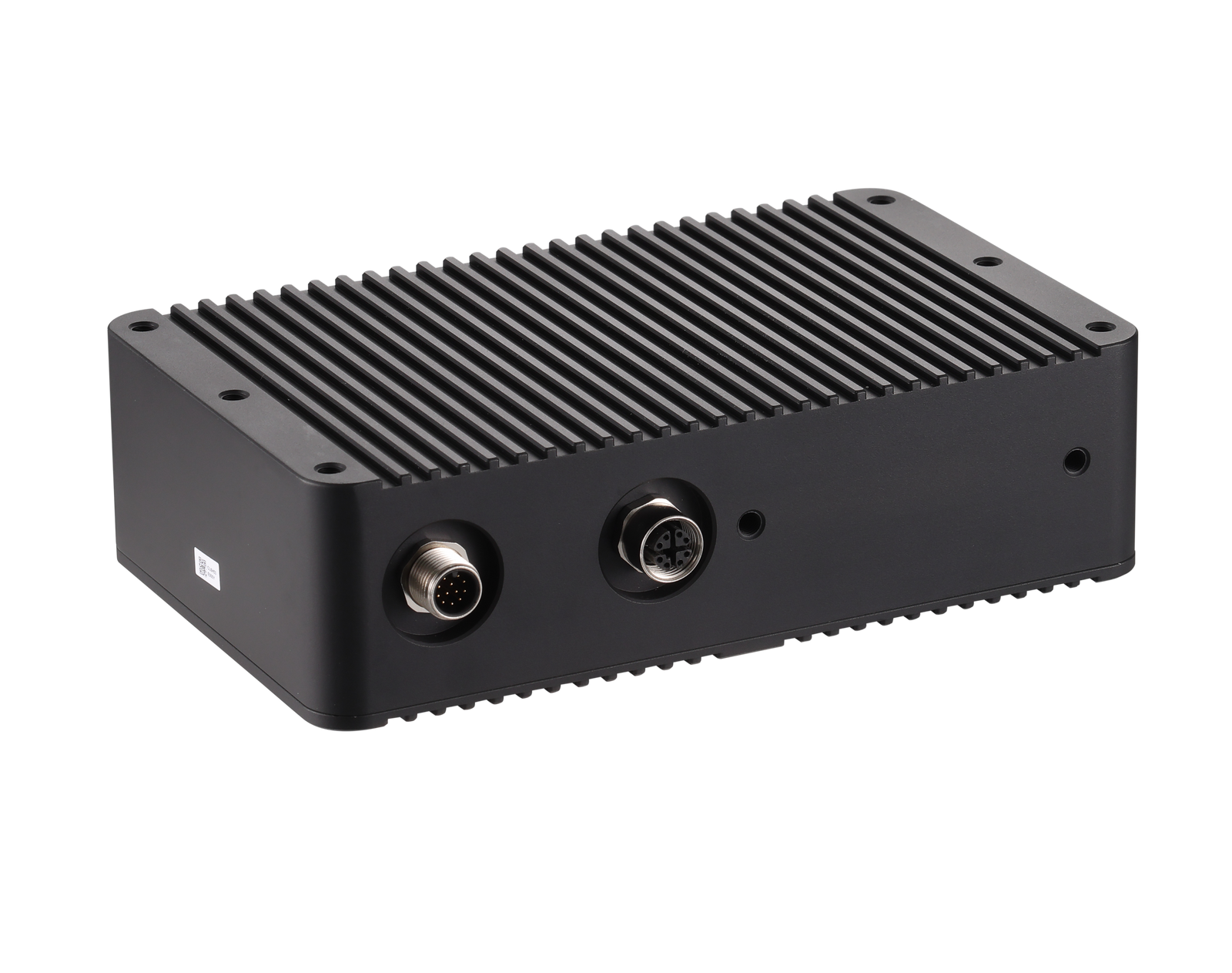

Rear view of Femto Mega I showcasing M12*1.0 power interface and M12*1.0 network interface for reliable connection.
Rear view of Femto Mega I showcasing M12*1.0 power interface and M12*1.0 network interface for reliable connection.
Click to open expanded view
Operating Environment Indoor / Semi-outdoor
Depth Technology iToF
Depth Range 0.25-5.46m
IMU Supported
SDK Orbbec SDK
Spatial Precision <11 mm+0.1% distance
Depth FoV WFoV 120° x 120°, NFoV 76° x 65°
Depth Resolution and Frame Rate Up to ： 1024 x 1024@15fps
Depth Shutter Type Global Shutter
RGB FoV 80° x 51°
RGB Resolution and Frame Rate Up to ：3840 × 2160@25fps
RGB Shutter Type Rolling Shutter
Power supply DC：12 - 24V POE：802.3at（24W）
Power Consumption < 11.0W
Protection IP65
Multi-device Sync port 12-Pin A-code
Operating Temperature 0℃ - 45℃
Weight 1080g
Dimensions (W*H*D) 180 × 110 × 50mm
Installation 8 x M5

Femto Mega I

● Depth camera with 1 Mega Pixel ToF sensor and 120° FOV

● 4K RGB with HDR

● 6DoF IMU

● IP65 dust and water protection

● Industrial grade M12 X-coding Ethernet port with PoE

● Sophisticated and accurate synchronization trigger control for multi-sensor network

Price
$1,995
Taxes and shipping calculated at checkout

What's Included:

● Femto Mega I 3D Camera
● L-shaped bracket
● M12- X coded to Rj45 -5m cable

Only 3 left in stock!
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

The Femto Mega I is the industrial-grade version of the Femto Mega, featuring an IP65 rating. This programmable multi-mode depth and RGB camera offers real-time streaming of processed images over Ethernet connections. It combines Microsoft’s cutting-edge ToF technology with NVIDIA’s superior computing power, enhanced by high-precision depth algorithms to create a robust software-defined vision system capable of flexible depth perception and image processing.
The camera is equipped with million-level iToF and 4K RGB sensors, delivering high-quality RGB-D image data. The Femto Mega I meets the needs of AI and computer vision developers and is well-suited for industrial automation scenarios, such as warehouse logistics automation, production line material handling, and the measurement of dimensions and volumes of large objects.
