Model 4GB RAM + 16GB Storage
Operating Environment Indoor/Semi-Outdoor; 5%-95%RH
Depth Technology Active Stereo IR
Depth Range *0.15-10m
Wavelength 850nm
Processor NVIDIA Jetson Nano Quad Core ARM A57 @ 1.43 GHz  Orbbec ASIC for Depth Processing,
SDK Orbbec SDK; Built-In Ubuntu 18.04
Depth FoV H91° V66°
Depth Resolution and Frame Rate Up to 1280X800@30fps
RGB FoV H86° V55°
RGB Resolution and Frame Rate Up to 1920X1080@30fps
RAM/Storage 4GB/ 16GB with expansion slot
WiFi/BT N/A
Power Input DC 12V/3A or PoE

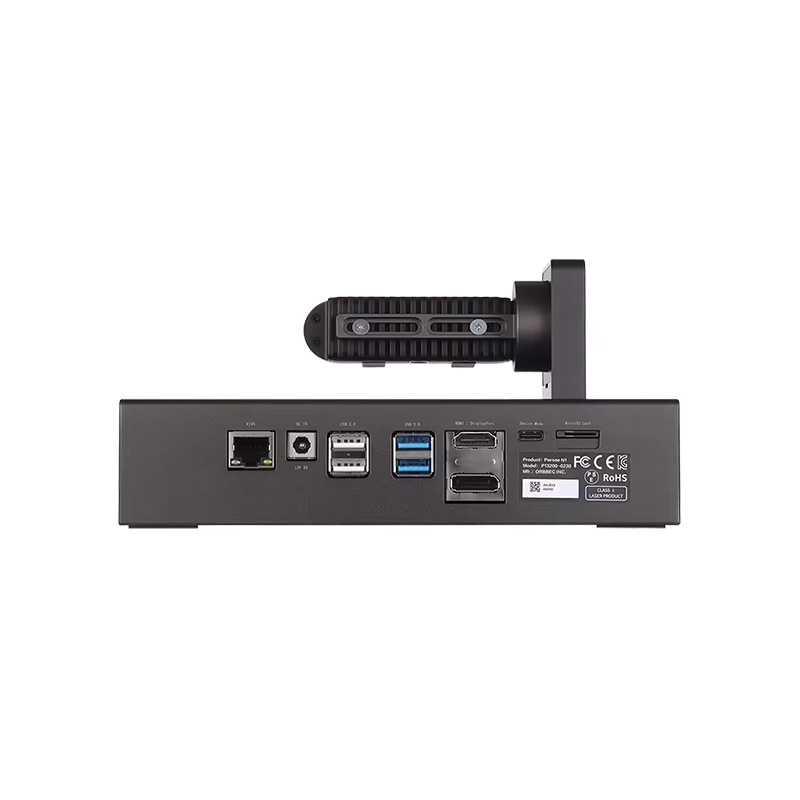

Ports USB 3.0 Type-A x 2, USB 2.0 Type-A x 2, USB Type-C (Device Mode Only), Gigabit Ethernet with PoE, HDMI, DisplayPort, MicroSD, M.2 Expansion Slot
Microphone N/A
Weight 986g
Dimensions (W*H*D) 200mm x 100mm x 90mm

Persee N1

● NVIDIA® Jetson Nano™ Quad Core ARM A57 @ 1.43 GHz

● High quality depth data output from 0.15-10m

● Up to 30 fps at 1280X800 depth resolution

● Up to 30 fps at 1920X1080 color resolution

● POE (Power over Ethernet), USB, HDMI

● Memory expansion with MicroSD and M.2

● 0℃ ~ 40℃ indoor/semi-outdoor operation

Price
$499
Taxes and shipping calculated at checkout
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

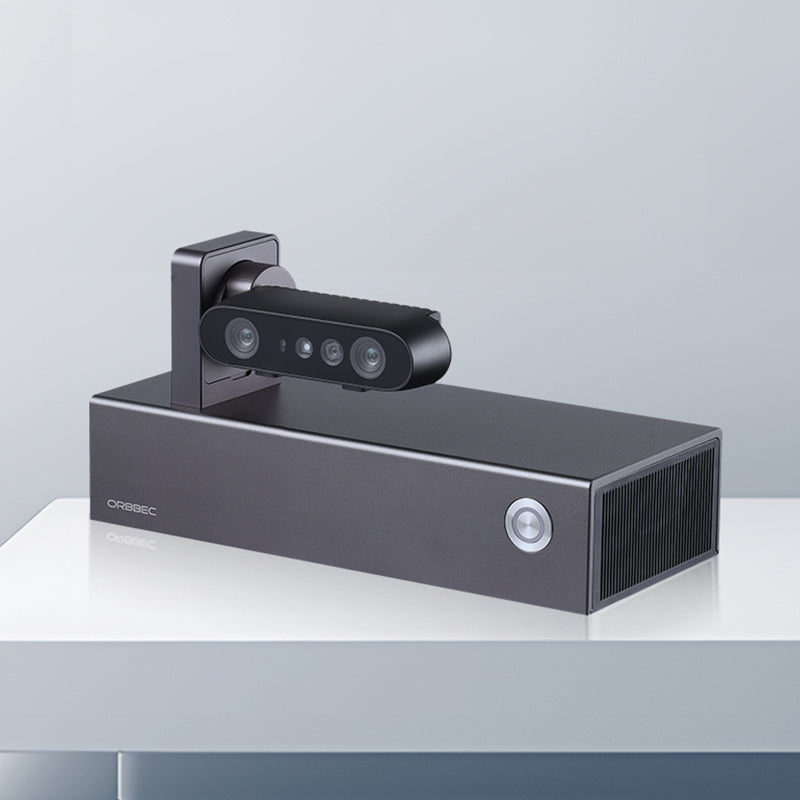

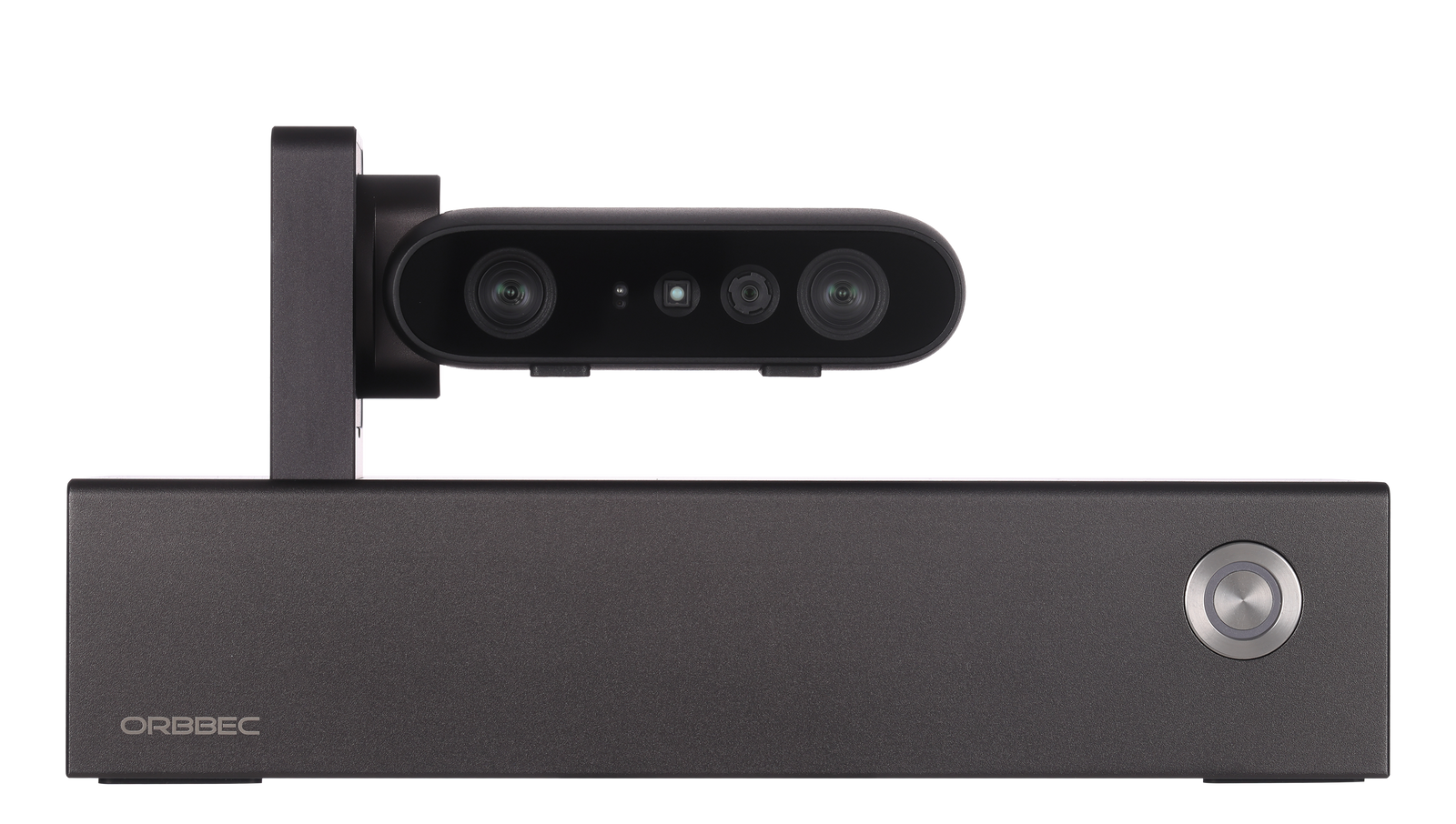

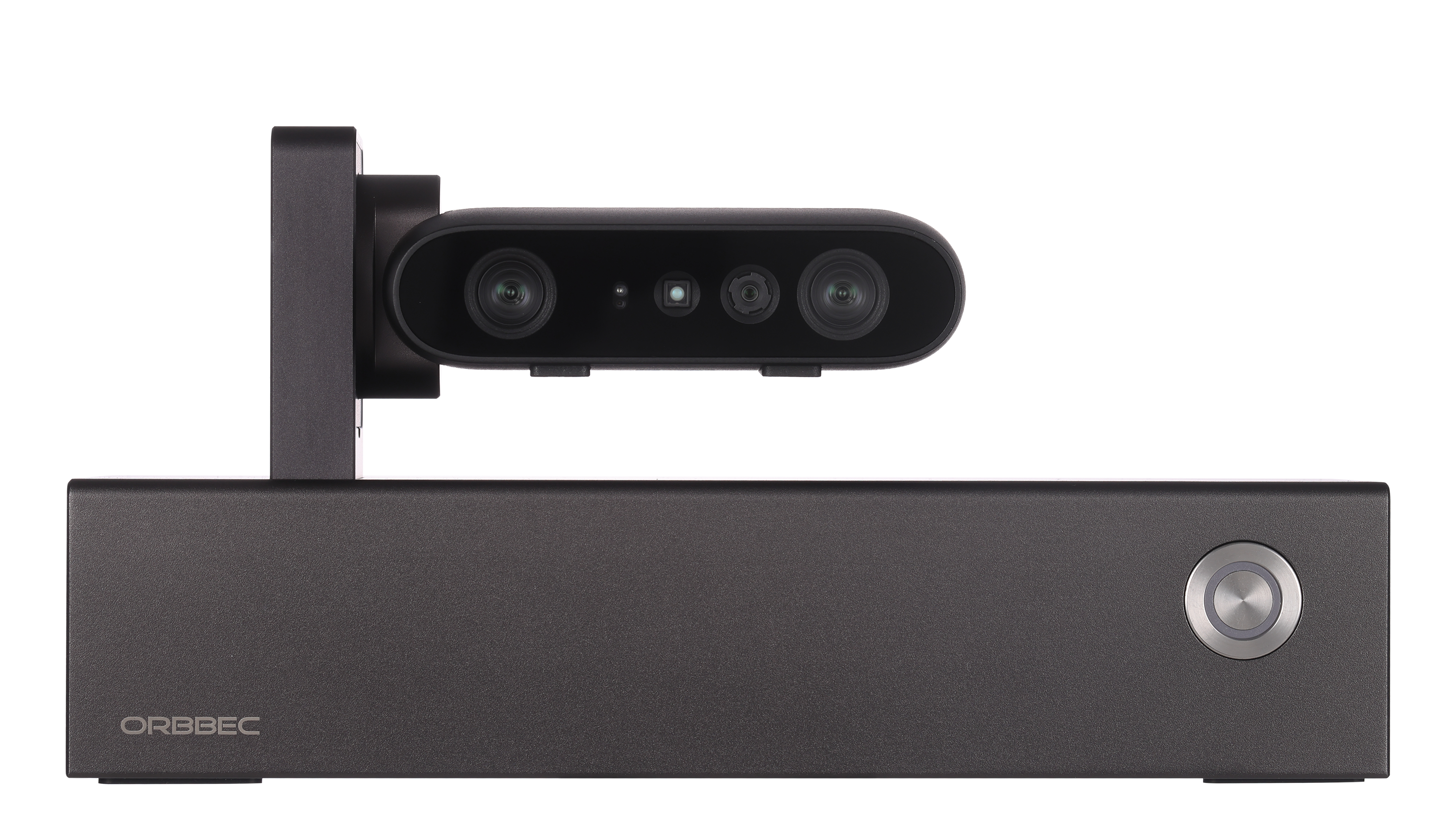

The Persee N1, co-developed by Orbbec and NVIDIA, is a 3D development kit that integrates the high-performance Gemini 2 stereo camera with the versatile NVIDIA Jetson Nano platform. In addition to its default configuration, this kit supports flexible integration of various Orbbec 3D cameras and NVIDIA computing platforms to meet user needs.
The kit features a diverse range of hardware interfaces, catering to robotics, smart vehicles, and human reconstruction control requirements. It also supports software platforms such as NVIDIA Jetpack, VisionWorks, and DeepStream, enabling the development, validation, deployment, and optimization of 3D-related projects from the NVIDIA open-source community, including motion sensing, obstacle avoidance, and volume measurement. This reduces development costs and further promotes innovation in 3D applications and the commercialization of smart camera products.
