Astra Stereo S U3
Astra Stereo S U3
Astra Stereo S U3
Astra Stereo S U3
Click to open expanded view
Operating Environment 10℃ - 40℃; Indoor/Semi-Outdoor; 10%-85%RH
Depth Technology Active Stereo IR
Depth Range *0.25-2.5m
Wavelength 940nm
Processor Orbbec ASIC
IMU N/A
SDK Orbbec OpenNI SDK
Spatial Precision ±5mm @ 1m
Depth FoV H67.9° V45.3°
Depth Resolution and Frame Rate Up to 1280X800@30fps
RGB FoV H71.5° V56.7°
RGB Resolution and Frame Rate Up to 1920X1080@30fps
Power Consumption Average <2.2W
Connector USB 3.0 Type-C
Weight 30 ± 5g
Dimensions (W*H*D) 65.3mm x 22.5mm x 12.3mm

Astra Stereo S U3

● Field of View at 67.9° Horizontal and 45.3° Vertical

● High quality depth data output from 0.25m to 2.5m

● Up to 30 fps at 1280X800 or 60 fps at 640X400 depth resolution

● Up to 30 frame per second at 1920*1080 RGB resolution

● Supports both USB 2.0/3.0 data and power operation

Price
$169.99
Taxes and shipping calculated at checkout
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Meta Pay
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

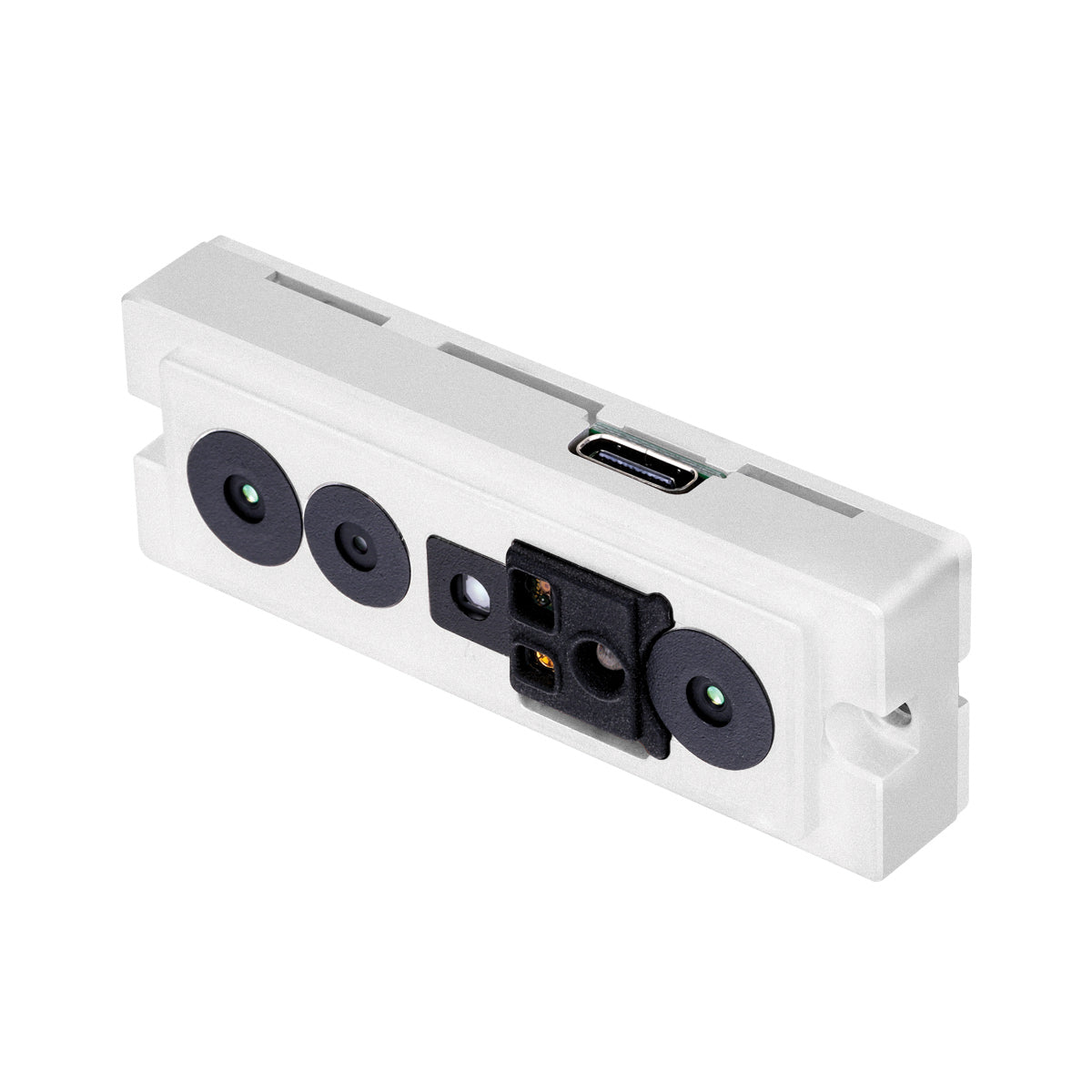

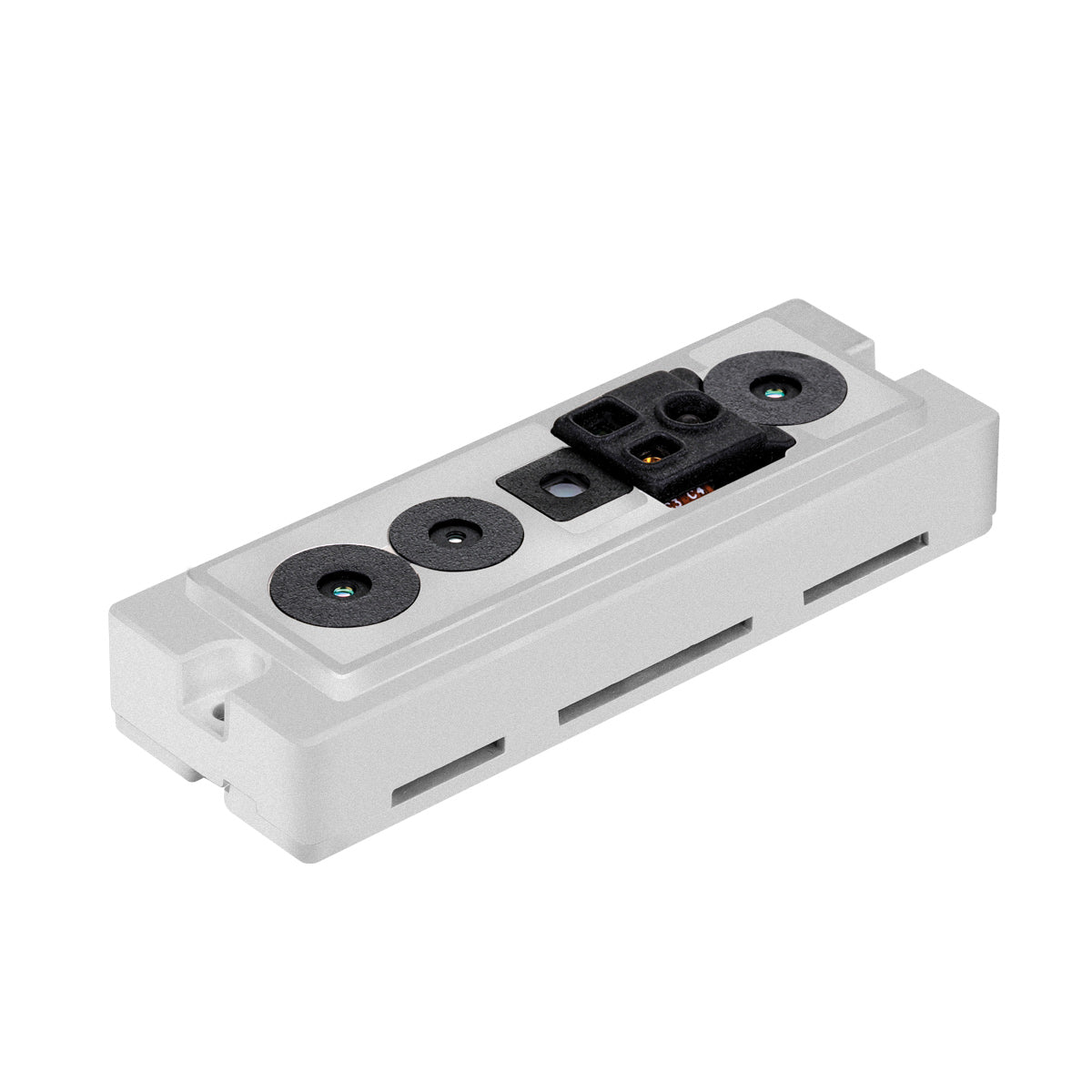

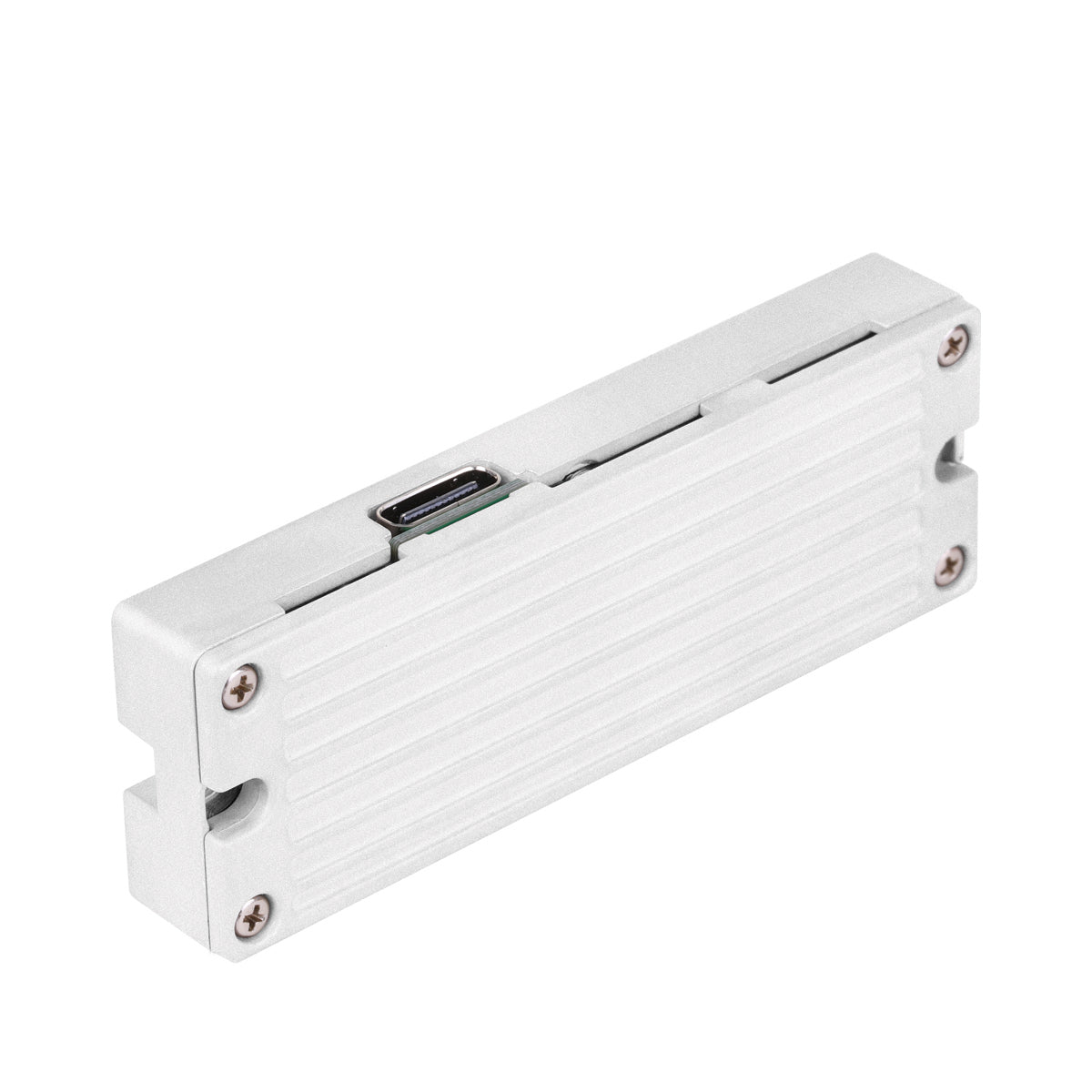

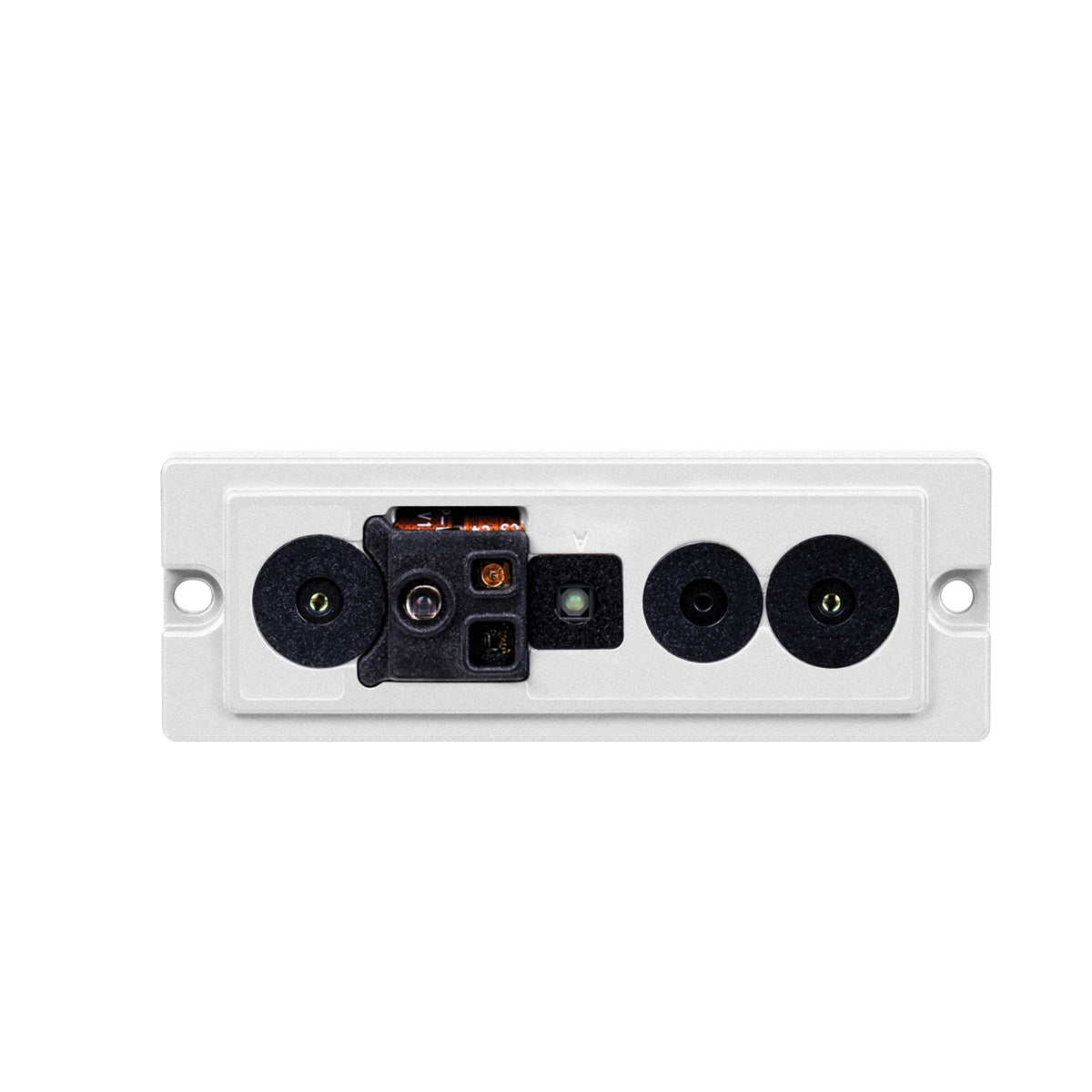

Astra Stereo S U3 is Orbbec’s first and the most compact Active Stereo IR technology-based 3D camera and is equipped with Orbbec’s custom ASIC for high quality depth processing and single cable USB 3.0 power + connectivity. The Astra Stereo S U3 is used for close range and high precision applications in  retail, robot picking, objective measurement, face identification, etc. The Orbbec OpenNI SDK makes it easy to setup and deliver highly accurate and reliable data in various lighting conditions.
