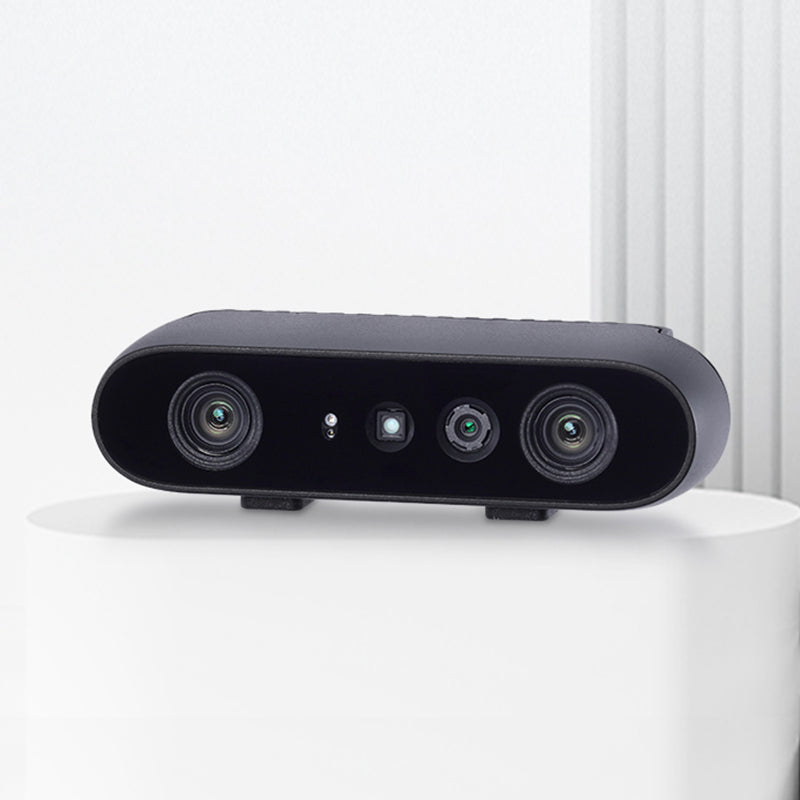

Angled promotional view of Orbbec Gemini 2 3D camera optimized for patient positioning and collaborative robotics.
Angled promotional view of Orbbec Gemini 2 3D camera optimized for patient positioning and collaborative robotics.
Front view of Orbbec Gemini 2 active stereo IR camera with wide 101-degree depth field of view.
Front view of Orbbec Gemini 2 active stereo IR camera with wide 101-degree depth field of view.

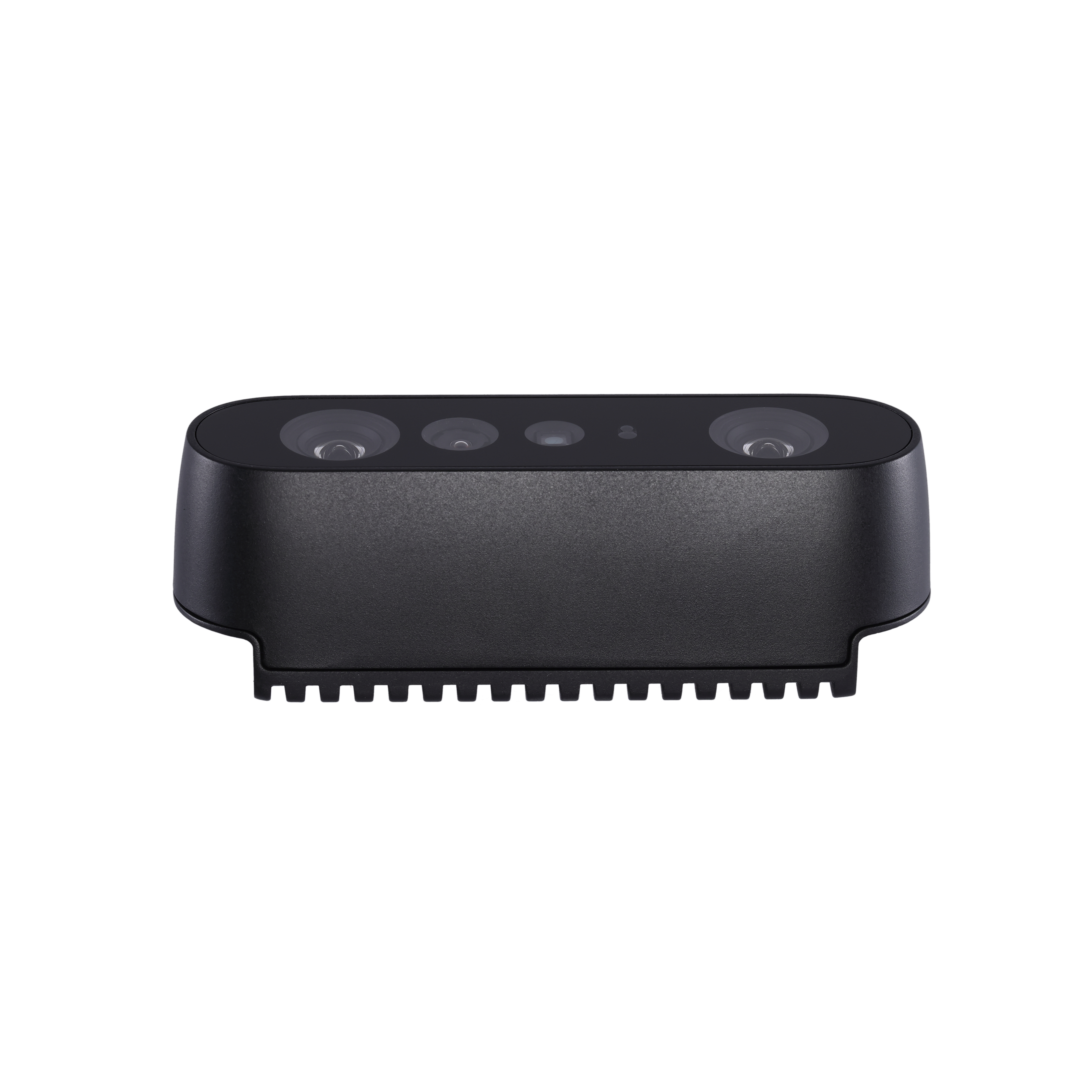

Top view of Gemini 2 active stereo 3D camera powered by custom ASIC MX6600 for real-time depth processing.
Top view of Gemini 2 active stereo 3D camera powered by custom ASIC MX6600 for real-time depth processing.

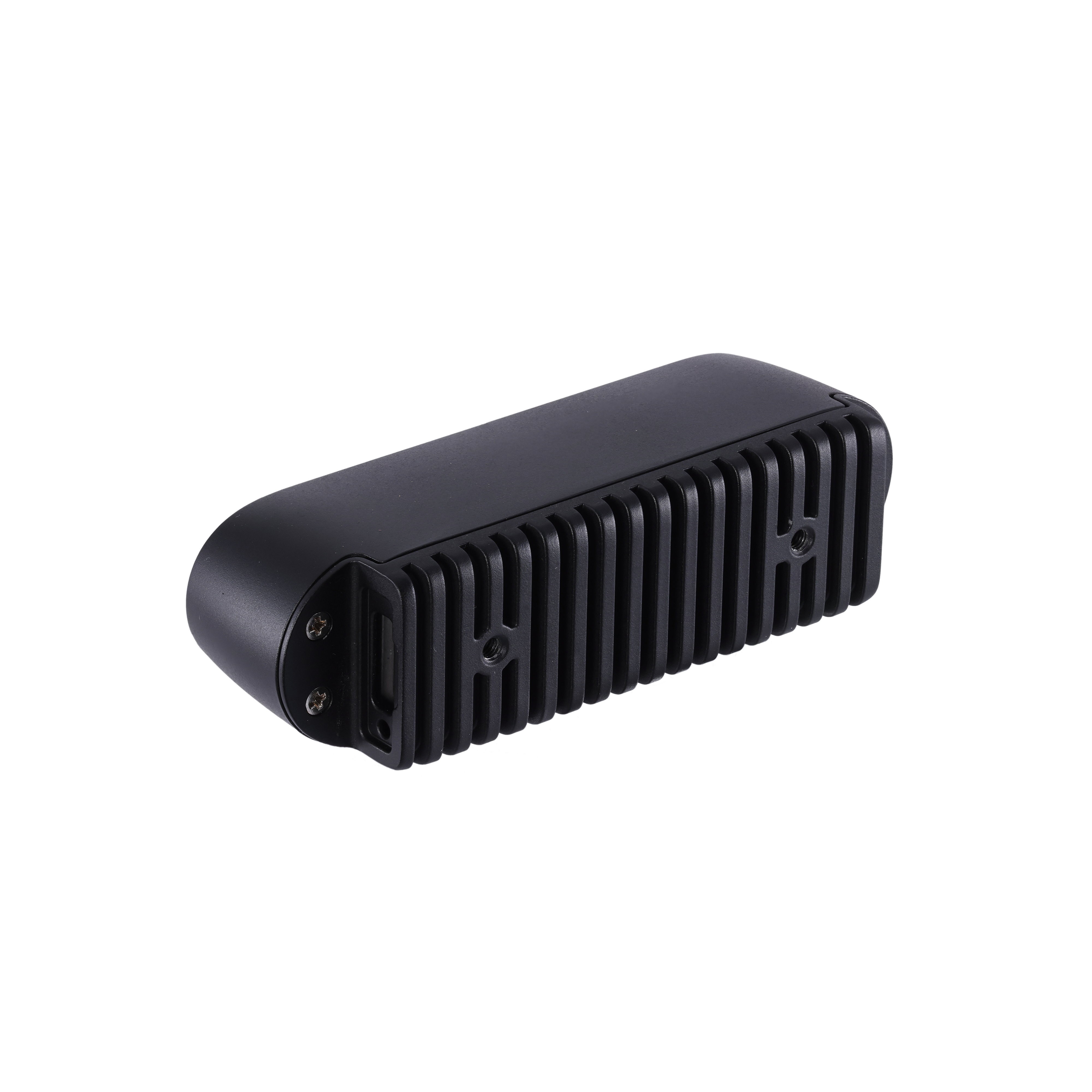

Rear view of Gemini 2 camera showcasing USB Type-C interface and supporting hardware D2C and multi-camera sync.
Rear view of Gemini 2 camera showcasing USB Type-C interface and supporting hardware D2C and multi-camera sync.
Click to open expanded view
Operating Environment Indoor / Semi-outdoor
Depth Technology Stereo Struructuture Light
Depth Range 0.15m - 10m
Ideal Range 0.2m - 5m
IMU Supported
Camera Driver UVC
SDK Orbbec SDK
Baseline 50mm
Spatial Precision ≤ 2% (1280x800@2m & 81% ROI)
Depth FoV H：91° / V：66° / D：101° ± 3°@2m
Depth Resolution and Frame Rate 1280 x 800@30fps; 640 x 400@60fps
Depth Shutter Type Global Shutter
RGB FoV 16：9 H：86° / V：55° / H：94° ± 3° 4：3 H：63° / V：50° / D：75° ± 3°
RGB Resolution and Frame Rate 1920 x 1080@30fps; 1280 x 720@60fps
RGB Image Format YUYV & MJPEG
RGB Shutter Type Rolling Shutter
Power supply DC 5V & ≥1.5A
Power Consumption Average < 2.5W
Connector USB Type-C
Multi-device Sync port 8-Pin
Operating Temperature 0℃ - 40℃
Weight 98g
Dimensions (W*H*D) 90 x 25 x 30 mm ± 0.5mm
Installation 1 x 1/4-20 UNC thread mounting point; 2 x M3 thread mounting points

Gemini 2

● Wide Field of View at 91° Horizontal and 66° Vertical

● High quality depth data output from 0.12m to 10m

● Up to 30 fps at 1280X800 depth resolution

● USB Type-C for power and data connectivity

● Multi-camera synchronization and IMU supported

Price
$234
Taxes and shipping calculated at checkout

What's Included:

● Gemini 2 3D Camera
● USB-C to USB-C cable
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

The Gemini 2 is the pioneering model in Orbbec's Gemini 2 Series. Based on active stereo IR technology, this compact camera is equipped with Orbbec’s custom ASIC MX6600 for high-quality depth processing, an integrated IMU, and single cable USB 3.0 for power and connectivity. It delivers exceptional depth point cloud flatness and is resistant to indoor light interference.
With a depth field of view (FoV) of up to 101° and zero blind spots up to 10 meters, the Gemini 2 achieves an RMSE accuracy of less than 2% at 2 meters. Featuring an integrated hardware D2C function to reduce the host computer's computational load and multi-camera synchronization capability, it is ideal for indoor applications such as patient positioning and collaborative robotics. The Gemini 2 is also easy to set up and operate with the Orbbec SDK.
