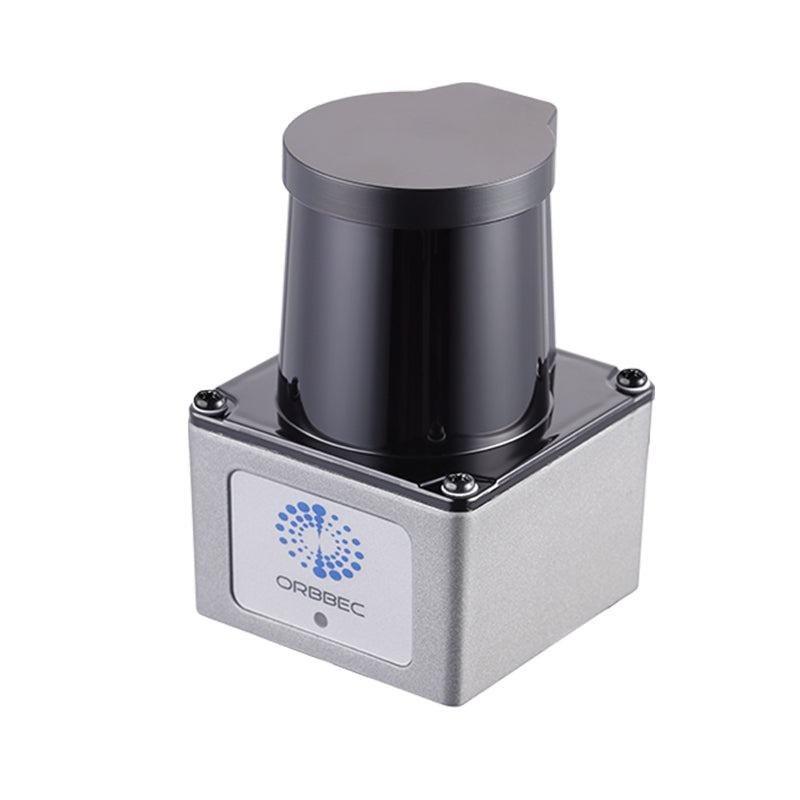

Angled product view of Pulsar SL450 dToF LiDAR featuring a rotating-mirror scanning system and IP65 housing.
Angled product view of Pulsar SL450 dToF LiDAR featuring a rotating-mirror scanning system and IP65 housing.

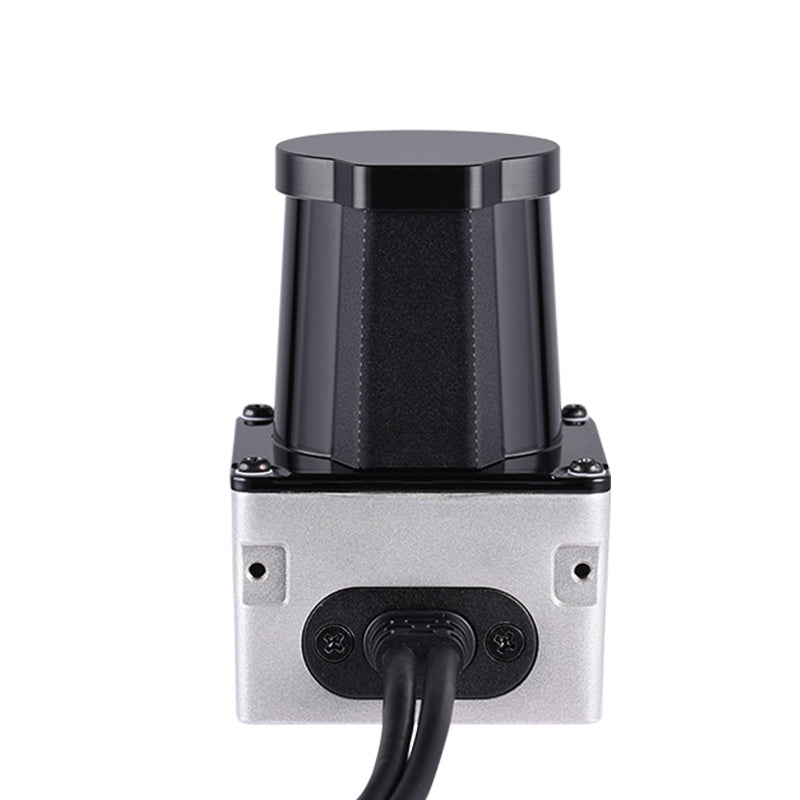

Rear panel view of Pulsar SL450 module displaying the heavy-duty cable output for stable robot navigation.
Rear panel view of Pulsar SL450 module displaying the heavy-duty cable output for stable robot navigation.

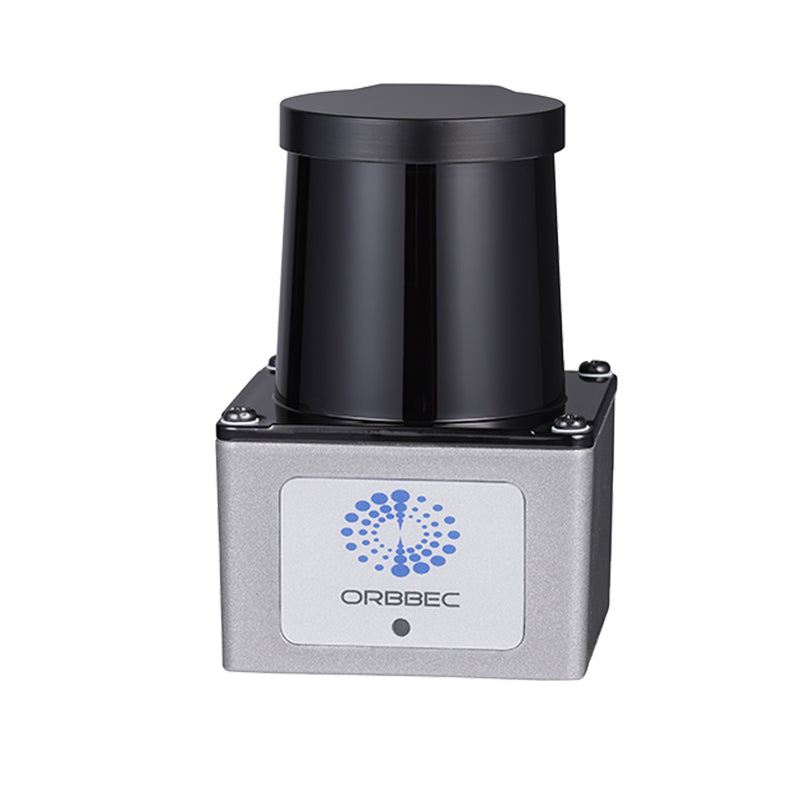

Front flat view of Pulsar SL450 single-line LiDAR delivering a robust 270-degree horizontal scanning area.
Front flat view of Pulsar SL450 single-line LiDAR delivering a robust 270-degree horizontal scanning area.

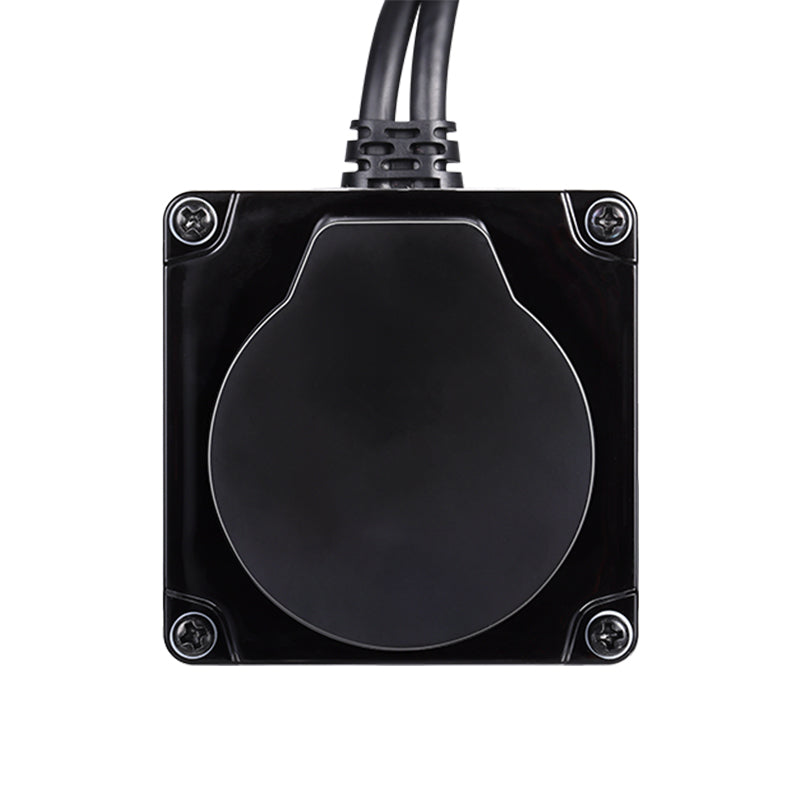

Top-down flat view of Pulsar SL450 enclosure showcasing the secure 4-point screw shell assembly layout.
Top-down flat view of Pulsar SL450 enclosure showcasing the secure 4-point screw shell assembly layout.

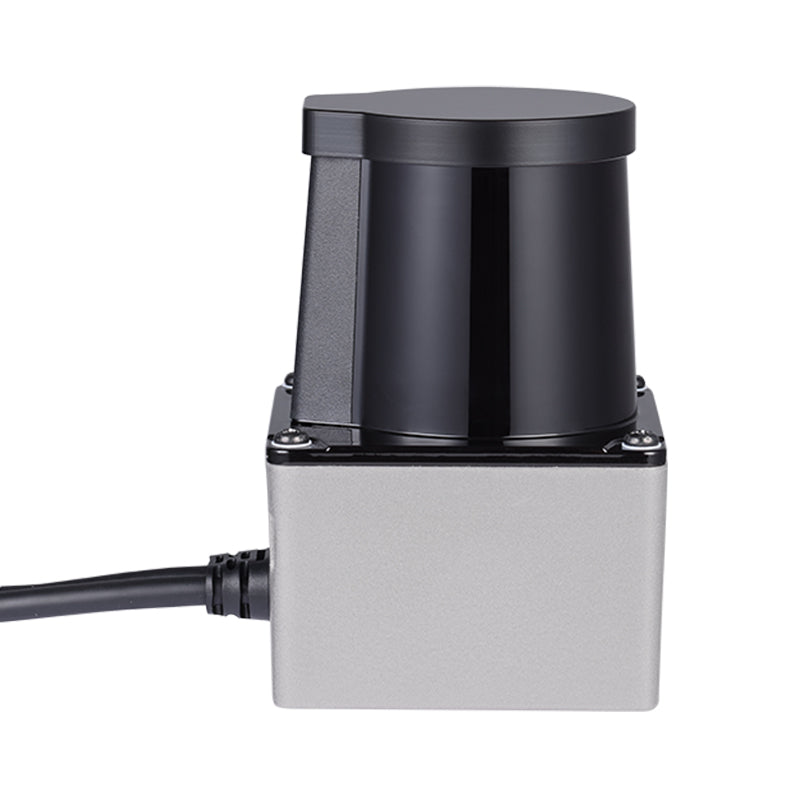

Side elevation photo of Pulsar SL450 laser sensor highlighting the 60mm compact square base footprint.
Side elevation photo of Pulsar SL450 laser sensor highlighting the 60mm compact square base footprint.
Click to open expanded view
Protection IP65
Measurement Technology dToF
Measurement Range 45.0m @ 90%; 15.0m @ 10%
Distance Accuracy ±20mm @ 90%; ±25mm @ 10%
Distance Precision ≤15mm @ 90% & 10%
Measurement Frequency 72kHz
Angular Resolution 0.075°/0.1°/0.125°/0.15°/0.2°
Laser Wavelength 903 ± 10nm
Operating Temperature -10℃ ~ 55℃
Scanning Angle 270°
Emission Pitch Angle 0° ± 0.5°
Weight ~320g
Dimensions (W*H*D) 60mm × 88mm × 60mm
Ambient Light Limit 60,000 Lux
Laser Class Class 1

dToF LiDAR Pulsar SL450

Cost-Effective Single-Line LiDAR for Robotic Navigation

  • 45m dToF Ranging & 270° Scan FOV High-accuracy single-line dToF LiDAR delivering stable 45m range (@90% reflectivity) and a 270° horizontal coverage for robotic navigation.
  • 72 kHz High-Density Point Cloud High-frequency sampling up to 72 kHz with fine 0.075° angular resolution captures gap-free, highly detailed surface scanning for real-time SLAM mapping.
  • Multi-Echo Filter & Class 1 Eye Safety Integrated multi-echo noise filtering design ensures precise scanning in harsh environments with light dust or fog, powered by a Class 1 safe 903nm laser.
  • IP65 Industrial Sealed Design Compact and durable 60 × 60 × 88 mm housing (320g) engineered to withstand tough operational conditions on autonomous forklifts and AMRs.
  • Ethernet Output & Consistent Mapping Features robust Ethernet connectivity and high point-cloud consistency, preventing calibration drift across mass robotic fleet deployments.
Frequently Asked Questions ▾
What is the Orbbec Pulsar SL450? ▾
The Pulsar SL450 is a cost-effective single-line LiDAR for robotic navigation. It uses direct Time of Flight (dToF) ranging and is built around a high-precision rotating-mirror optical scanning system with a high-frequency laser pulse transmitter. Its optical, mechanical, and structural design allows robust, accurate scanning across a 270 degree horizontal area up to a distance of 45m, suiting it to robot positioning and navigation, area security, logistics, environmental scanning, and 3D scene reconstruction.
What is the measurement range and accuracy of the Pulsar SL450? ▾
The Pulsar SL450 has a measurement range of 45.0m at 90% reflectivity and 15.0m at 10% reflectivity. Its accuracy is plus or minus 20mm at 90% and plus or minus 25mm at 10%, with a precision of 15mm or better at both 90% and 10% reflectivity. It uses a 903nm laser and can operate in ambient light up to 60,000 Lux.
How detailed is the Pulsar SL450's point cloud? ▾
The Pulsar SL450 supports high-density point cloud scanning with a measurement frequency of up to 72 kHz and an angular resolution as fine as 0.075 degrees. Selectable angular resolutions include 0.075, 0.1, 0.125, 0.15, and 0.2 degrees, so you can balance detail against data rate. It scans a 270 degree horizontal area, helping capture fine surface detail without missing features.
How does the Pulsar SL450 perform in dust or fog? ▾
The Pulsar SL450 combines reliable ranging with a multi-echo noise filtering design, which enables precise scanning and accurate data feedback even in environments containing light dust or fog. It also delivers a high degree of point cloud consistency, with uniform accuracy and precision that avoids varying positive or negative offsets, so each sensor produces maps of consistent quality.
Is the Pulsar SL450 suitable for demanding environments? ▾
Yes. The Pulsar SL450 carries an IP65 ingress protection rating and uses a Class 1 laser that is safe for the eyes. It operates across an ambient temperature range of -10 to 55 degrees Celsius. It measures 60mm x 60mm x 88mm and weighs about 320g, making it compact enough for mobile robot integration.
What are the typical applications for the Pulsar SL450? ▾
The Pulsar SL450 is used for warehouse AMRs, autonomous forklifts, and commercial service robots. Its 270 degree scanning angle, long range, and consistent mapping make it well suited to robot positioning and navigation as well as environmental scanning.
What software supports the Pulsar SL450? ▾
The Pulsar SL450 is supported by an open-source SDK with support for ROS1 and ROS2, and it can be developed in both Windows and Linux environments. Orbbec also provides a professional technical team for development support to help accelerate deployment.



Price
$420
Taxes and shipping calculated at checkout
Only 4 left in stock!
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

The Orbbec Pulsar SL450 is a high-precision, cost-effective single-line 2D LiDAR built specifically for autonomous mobile robot (AMR) navigation and industrial positioning. While the Pulsar ME450 offers 3D multi-pattern scanning, the SL450 focuses on delivering high-density single-line ranging within a 270° horizontal field of view—making it an ideal, high-reliability perception solution for volume AMR, AGV, and automated forklift deployments.

Utilizing direct Time-of-Flight (dToF) technology at 903 nm, the Pulsar SL450 operates at sample rates up to 72 kHz with an angular resolution as fine as 0.075°. It achieves a maximum detection range of 45 m at 90% reflectivity with ±20 mm accuracy and ≤15 mm precision. Built for challenging environments, its multi-echo filtering capability mitigates interference from dust, smoke, or light fog, while strong 60,000 Lux ambient light immunity ensures uninterrupted operation under direct sunlight or intense factory lighting.

Engineered for 2D SLAM navigation, perimeter security, logistics sorting, and 3D scene reconstruction, the Pulsar SL450 features a 100 Mbps RJ45 Ethernet connection with a GPS_PPS time-synchronization input for seamless multi-sensor fleet integration. Development is accelerated with the open-source Orbbec SDK, offering full ROS1 and ROS2 support across Windows and Linux platforms. Housed in an IP65-rated enclosure operating from -10 °C to 55 °C, with Class 1 laser safety and CE-EMC, FCC, RoHS 2.0, REACH, and FDA certifications, the Pulsar SL450 is a dependable choice for volume robotic navigation—order today or evaluate the Pulsar ME450 for 3D scanning.
