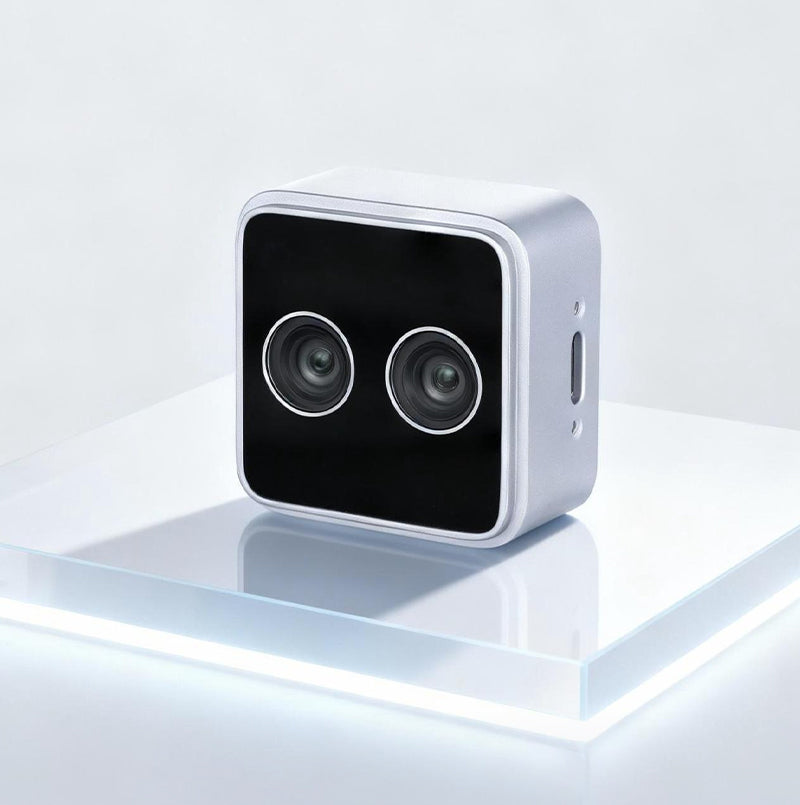

Angled promotional view of Gemini 305 3D camera featuring a 68g compact body for agile robotic grasping.
Angled promotional view of Gemini 305 3D camera featuring a 68g compact body for agile robotic grasping.

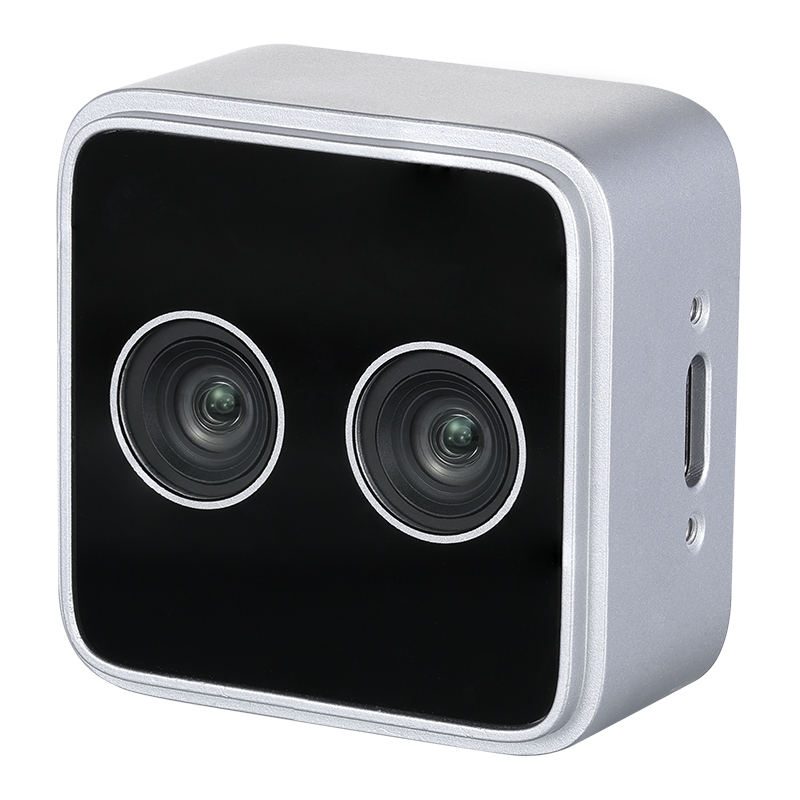

Right angled view of Orbbec Gemini 305 cobot camera engineered for robotic wrist mounting and recognition.
Right angled view of Orbbec Gemini 305 cobot camera engineered for robotic wrist mounting and recognition.

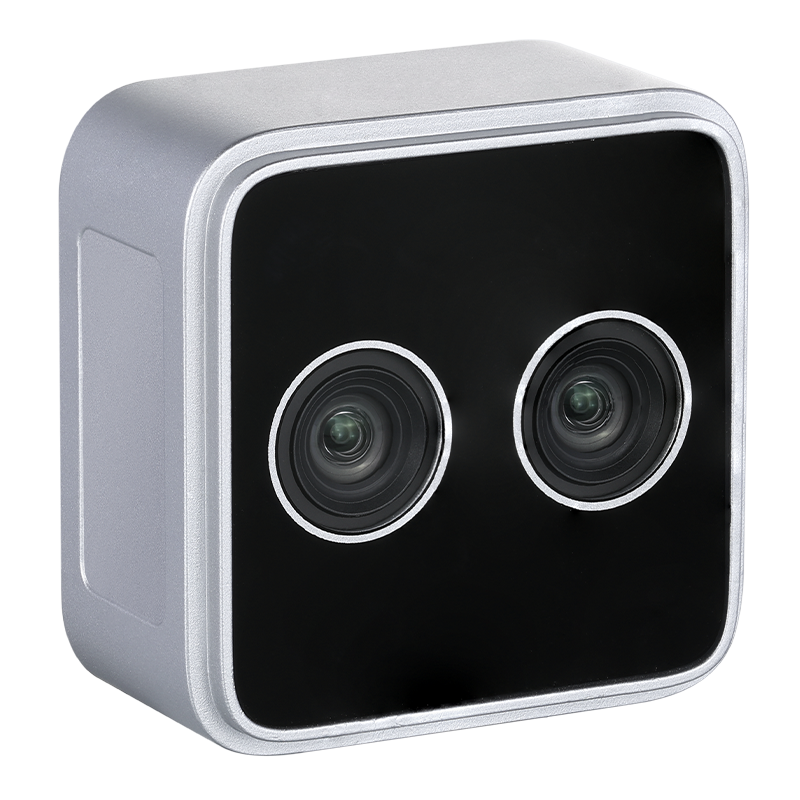

Left angled view of Gemini 305 3D camera supporting 4cm ultra-close depth and color imaging.
Left angled view of Gemini 305 3D camera supporting 4cm ultra-close depth and color imaging.

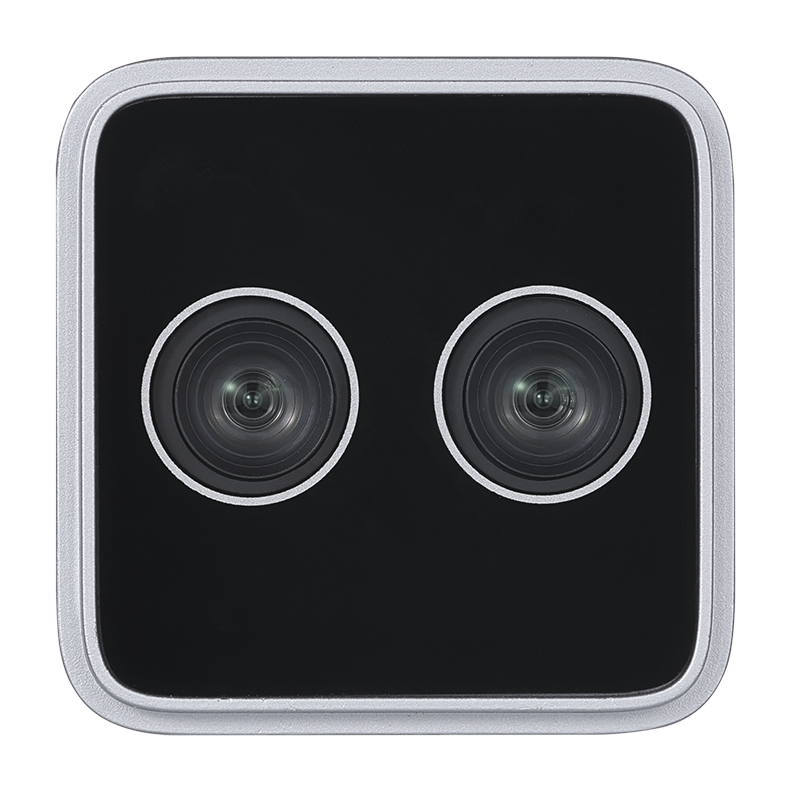

Front view of Gemini 305 stereo vision camera with dual global shutter sensors for dynamic scenes.
Front view of Gemini 305 stereo vision camera with dual global shutter sensors for dynamic scenes.

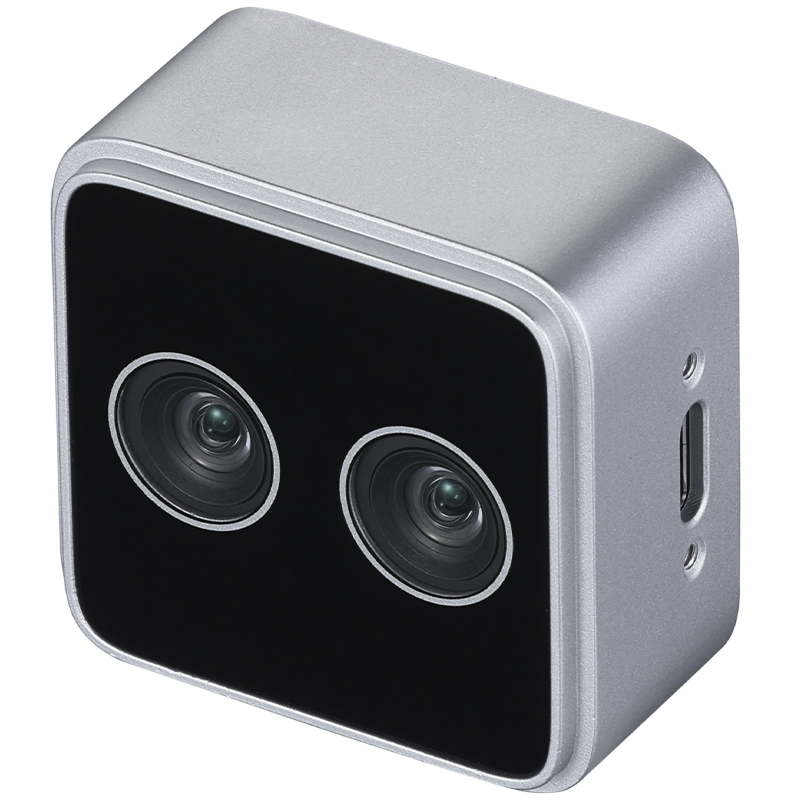

Top angled view of Gemini 305 robotic arm camera delivering low-latency real-time visual tracking data.
Top angled view of Gemini 305 robotic arm camera delivering low-latency real-time visual tracking data.

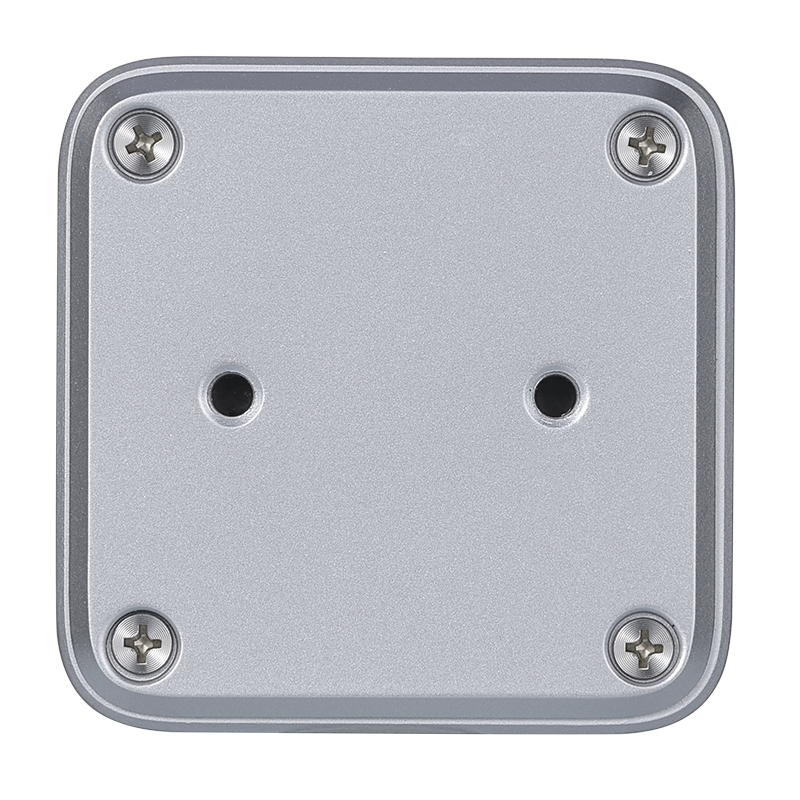

Rear view of Orbbec Gemini 305 stereo camera detailing the 2x M3 back installation mounting points.
Rear view of Orbbec Gemini 305 stereo camera detailing the 2x M3 back installation mounting points.

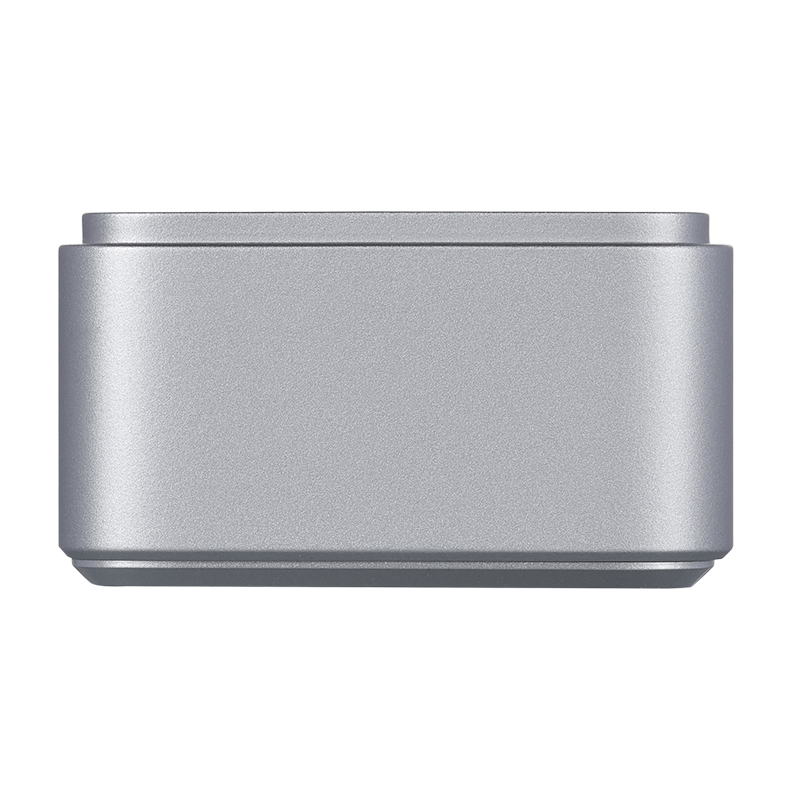

Top view of Orbbec Gemini 305 stereo camera module showcasing the compact 42mm x 42mm dimension layout.
Top view of Orbbec Gemini 305 stereo camera module showcasing the compact 42mm x 42mm dimension layout.

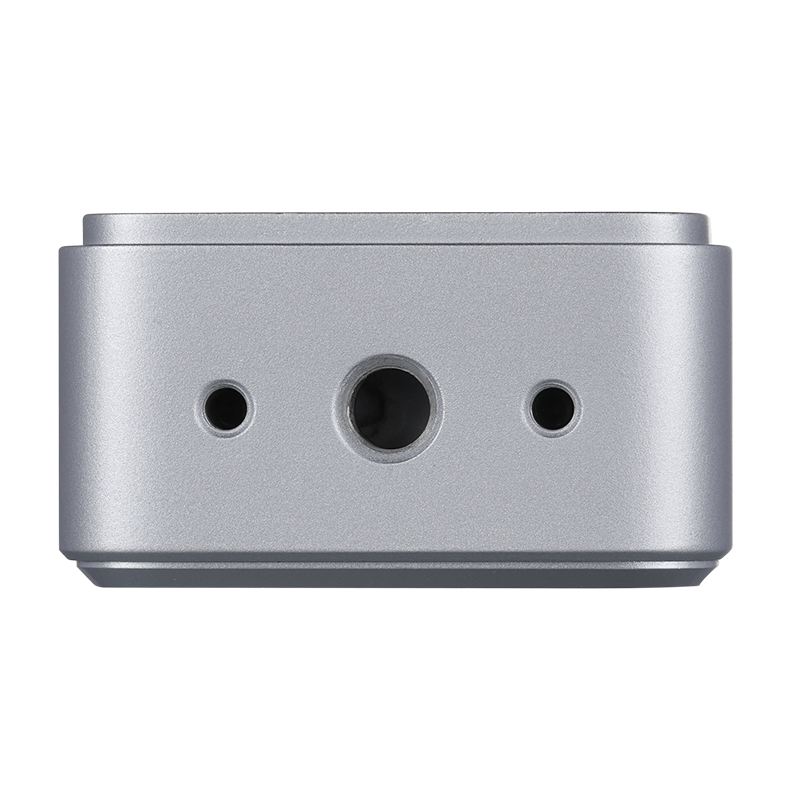

Bottom view of Gemini 305 camera highlighting 1x 1/4-20 UNC and 2x M3 thread holes for flexible mounting.
Bottom view of Gemini 305 camera highlighting 1x 1/4-20 UNC and 2x M3 thread holes for flexible mounting.

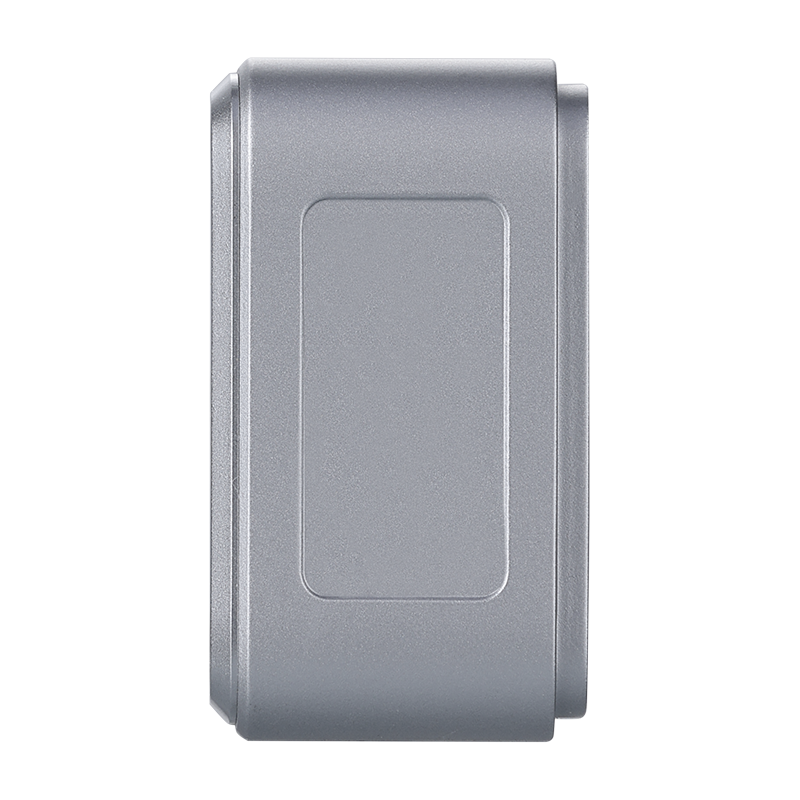

Left side view of Gemini 305 depth camera showcasing the slim profile and IP54 ingress protection rating.
Left side view of Gemini 305 depth camera showcasing the slim profile and IP54 ingress protection rating.

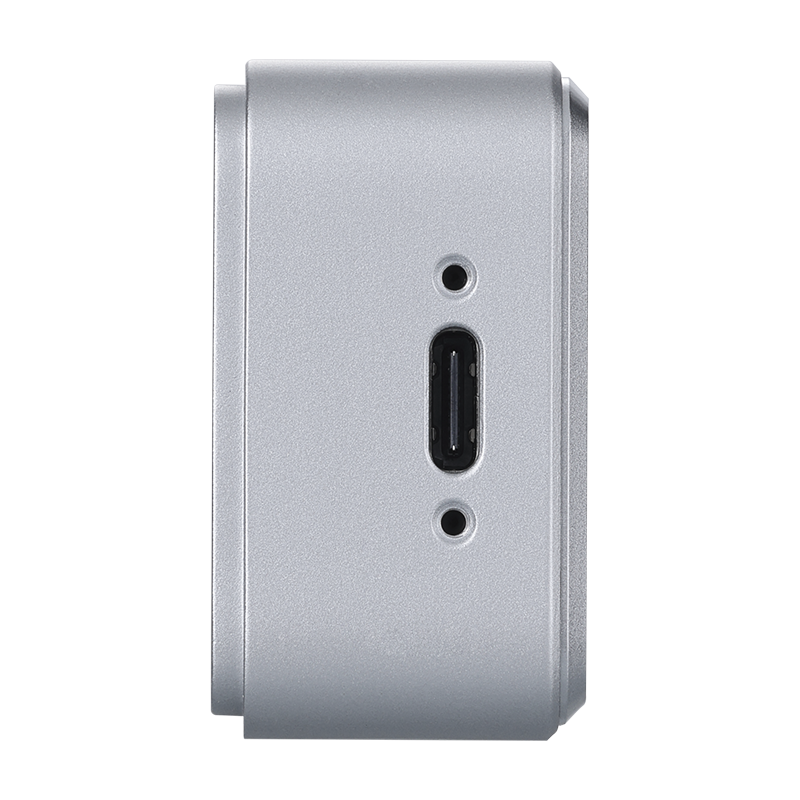

Right side view of Gemini 305 sensor highlighting the USB Type-C port for power and data connection.
Right side view of Gemini 305 sensor highlighting the USB Type-C port for power and data connection.
Click to open expanded view
Operating Environment Indoor & Outdoor
Depth Technology Stereo Vision
Depth Range 4 - 100cm
Ideal Range 7 - 50cm
Processor Orbbec MX6800 ASIC
IMU N/A
SDK Orbbec SDK
Baseline 18mm
Spatial Precision ≤1% (1280 x 800 @ 50cm & 90% x 90% ROI)
Depth FoV H 88° x V 65° ±3°（1280 x 800 @ 20cm）
Depth Resolution @ Frame Rate Up to： 1280 x 800 @ 30fps; 848 x 480 @ 60fps
RGB FoV H 94° x V 68° ±3°
RGB Resolution and Frame Rate Up to： 1280 x 800 @ 60fps
RGB Shutter Type Global Shutter
Power supply DC 5V & ＞0.7A
Power Consumption ≤ 2.0W
Protection IP54 (only when the Type-C interface is properly connected and the screws are tightened)
Multi-camera Sync Support
Operating Temperature -10 - 45°C @ 128 disparity search range; -10 - 40°C @ 256 disparity search range
External Trigger Software & Hardware
Dimensions (W*H*D) 42mm x 42mm x 23mm
Interface USB 3.0 (recommended) & USB 2.0 Type-C
Ingress Protection Rating IP54(Requires connection using an ingress-protected USB cable with secured screws.)
Installation Bottom： 1 x 1/4-20 UNC, 2 x M3; Back： 2 x M3

Gemini 305

Lightweight Close-Range Stereo Vision Camera for Robotic Wrist Mounting

  • 4 cm Ultra-Close Perception Purpose-built for robotic wrist mounting with a minimum operating range down to 4 cm, enabling precise grasping even in space-constrained setups.
  • Sub-millimeter Accuracy for Depth Sensing Delivers highly precise spatial data with sub-millimeter accuracy at 15 cm, achieving a spatial precision of ≤1% (1280 x 800 @ 50 cm & 90% x 90% ROI).
  • Agile High-Performance Imaging Streams depth resolution up to 1280 x 800 @ 30fps and global-shutter color up to 1280 x 800 @ 60fps, supporting one-click switching between "Depth + Color" and "Dual-Color" presets.
  • Ultra-Compact 68g & IP54-Rated Body Features an ultra-lightweight 68g footprint (42 × 42 × 23 mm) with an IP54 ingress protection rating, ideally engineered for payload-sensitive Cobots and Humanoid robots.
  • Seamless Hardware & Software Sync Achieves multi-camera synchronization via hardware and software triggers, enabling low-latency direct depth output down to 60 ms.
Frequently Asked Questions ▾
What makes Gemini 305 ideal for humanoid robot and cobot applications? ▾
The Gemini 305 is a lightweight 68g stereo vision camera specifically designed for robotic wrist mounting. Its ultra-close 4cm minimum range, sub-millimeter accuracy, and compact 42mm x 42mm form factor make it ideal for collaborative robots (cobots), humanoid robots, and pick-and-place applications requiring precise close-range depth sensing.
What is the difference between Gemini 305 and Gemini 305g? ▾
The Gemini 305g adds a GMSL2 serializer with FAKRA connector in addition to the USB Type-C interface. This GMSL2/FAKRA option provides flexible, low-loss cabling that better handles the challenges of constant twisting and bending in dynamic robotic arm motion.
What is the depth accuracy of Gemini 305? ▾
The Gemini 305 achieves sub-millimeter accuracy at 15cm and maintains spatial precision of ≤1% at 50cm (measured at 1280x800 resolution within 90%x90% ROI).
What resolution and frame rate does Gemini 305 support? ▾
Depth resolution: up to 1280x800 at 30fps. Color resolution: up to 1280x800 at 60fps. Both depth and color streams use global shutter sensors, ensuring sharp imaging of moving objects without motion blur.
What is the IP rating and operating temperature of Gemini 305? ▾
The Gemini 305 has an IP54 ingress protection rating for dust and splash protection. It operates in ambient temperatures from -10°C to 45°C.
What applications is Gemini 305 best suited for? ▾
The Gemini 305 is optimized for: Cobots (collaborative robots) with wrist-mounted vision, Humanoid robots for hand-eye coordination and dexterous manipulation, Pick-and-place operations requiring close-range accuracy, and robotic grasping tasks. Its 4cm minimum range and lightweight 68g design make it ideal for end-of-arm tooling applications.
Price
$229
Taxes and shipping calculated at checkout

What's Included:

● 1x Gemini 305
● 1x USB Cable(1m)
● 1x Quick Start Guide
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

Orbbec Gemini 305: 68g Ultra-Lightweight 3D Camera for Robotic Wrists

The Orbbec Gemini 305 is an ultra-compact stereo vision camera engineered specifically for robotic wrist mounting. Weighing a mere 68 g with dimensions of 42 mm x 42 mm x 23 mm, it features an IP54-rated housing and operates reliably from -10°C to 45°C. Powered via a standard USB Type-C connection, it delivers highly precise visual data for recognition and grasping on payload-sensitive collaborative and humanoid robots.

High-Performance Close-Range Perception
Designed to eliminate close-range blind spots, the camera boasts a minimum operating range of 4 cm and delivers sub-millimeter accuracy at 15 cm. Its proprietary decoupled depth-color design and dual-channel color capture stream depth resolutions up to 1280 x 800 @ 30fps and color up to 1280 x 800 @ 60fps. Utilizing global shutter for color imaging, it effectively reduces motion blur during dynamic robotic arm movement.

Seamless Synchronization & Flexible Imaging Modes
The Gemini 305 achieves multi-camera synchronization through both hardware-sync and software-sync methods, ensuring low-latency direct depth output down to 60 ms. Predefined imaging presets enable one-click switching between "Depth + Color" and "Dual-Color" streaming modes, allowing flexible configuration according to different using scenarios.
