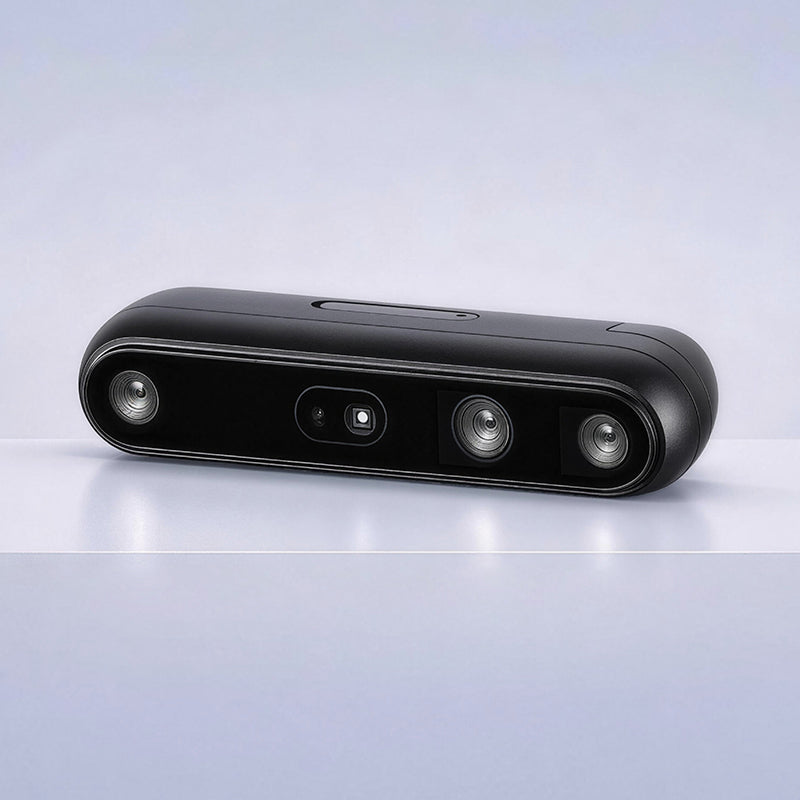

Gemini 338Lg
Click to open expanded view
Operating Environment Indoor / Outdoor Use
Depth Technology Stereo Vision
Depth Range 0.17m - 20m+
Ideal Range 0.25m - 6m
IMU Equipped
SDK Orbbec SDK v2
Baseline 95 mm
Spatial Precision ≤0.8% @ 2m; ≤1.6% @ 4m
Depth FoV 90° x 65° ± 3° @ 2m
Depth Resolution and Frame Rate Up to：1280 x 800 @ 30fps; 848 x 480 @ 60fps
Depth Shutter Type Global Shutter
RGB FoV 94° × 68° ± 3°
RGB Resolution and Frame Rate Up to：1280 × 800 @ 60fps; 1280 × 720 @ 60fps
RGB Shutter Type Global Shutter
Power supply GMSL2：For Best Performance DC 12V & ≥ 0.7A(Laser Energy Level 6); Default DC 12V & ≥ 0.5A(Laser Energy Level 4); USB 3：DC 5V & ≥ 1.5A
Power Consumption GMSL：AVG Power Consumption＜3.8W, Peak Power Consumption＜7.5W; USB：AVG Power Consumption＜3.0W, Peak Power Consumption＜6W
Connector GMSL2/FAKRA-Z & USB Type-C
Protection IP65
Multi-device Sync port MIPI Mode：FAKRA-Z & 8-Pin USB; Mode：8-Pin
Operating Temperature -10°C - 50°C @ 15fps; -10°C - 45°C @ 30/60fps
Weight 164g ± 3g
Dimensions (W*H*D) 124mm x 29mm x 36mm ± 0.3mm
Installation Bottom：1 x 1/4-20unc; Back：2 x M4

Gemini 338Lg

Engineered for Challenging Ambient Light Conditions

Ambient Light Resistance | GMSL2/FAKRA | Stable Depth Imaging
Price
$429
Taxes and shipping calculated at checkout

What's Included:

● Gemini 338Lg 3D Camera
● FAKRA-Z to FAKRA-Z cable
● Tripod
● Tripod head
● Quick Start Doc
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

Reliable Depth Sensing for Complex Ambient Light Environment
The Gemini 338Lg features a built-in IR bandpass filter to reduce ambient light interference, along with high-speed GMSL2/FAKRA connectivity for flexible integration into mobile robots, humanoid robots, robotic arms, outdoor inspection systems, and vehicle-mounted vision platforms. It delivers consistent, reliable depth data even under challenging ambient light conditions.

Filters Out Ambient Light Interference for Accurate Depth Output
The Gemini 338Lg features an IR bandpass optical design that passes only the wavelength range of the laser illumination while rejecting out-of-band ambient light. Even in scenes with mixed bright and dark areas or strong ambient light, it consistently delivers high-quality depth images, reducing perception errors caused by changing lighting conditions and helping robots maintain reliable and efficient operation.

Robust Optical Design for Long-Term Reliability
The Gemini 338Lg features a durable glass cover that enhances mechanical durability and protects against potential damage caused by frequent operation, routine cleaning, and maintenance.

Secure GMSL2/FAKRA Connection for Reliable Real-Time Depth Transmission
The Gemini 338Lg features a high-speed GMSL2/FAKRA interface that combines low-latency transmission, secure connectivity, and compact cabling, enabling flexible integration across various robotic platforms and mobile systems. It maintains reliable depth data transmission during continuous motion and mechanical vibration.

Rugged Structure Design for Challenging Environments
The Gemini 338Lg features an IP65-rated enclosure, robust mechanical stability, and a wide operating temperature range of −10°C to 50°C, ensuring reliable operation in challenging conditions involving dust, rain, and continuous motion.
