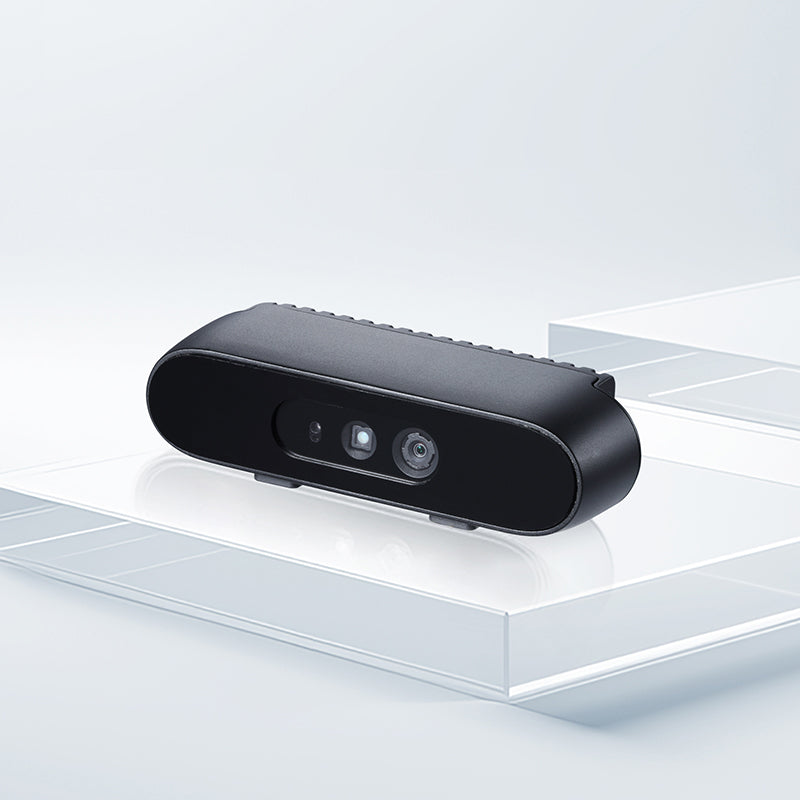

Close-up of Gemini 336 stereo vision camera lens array utilizing active infrared imaging to filter visible light.
Close-up of Gemini 336 stereo vision camera lens array utilizing active infrared imaging to filter visible light.
Front view of Orbbec Gemini 336 3D camera featuring infrared vision filter to eliminate visible light spectrum and glare.
Front view of Orbbec Gemini 336 3D camera featuring infrared vision filter to eliminate visible light spectrum and glare.
Rear view of Orbbec Gemini 336 3D camera showing robust industrial heatsink and the high-speed USB-C interface for stable data transmission.
Rear view of Orbbec Gemini 336 3D camera showing robust industrial heatsink and the high-speed USB-C interface for stable data transmission.

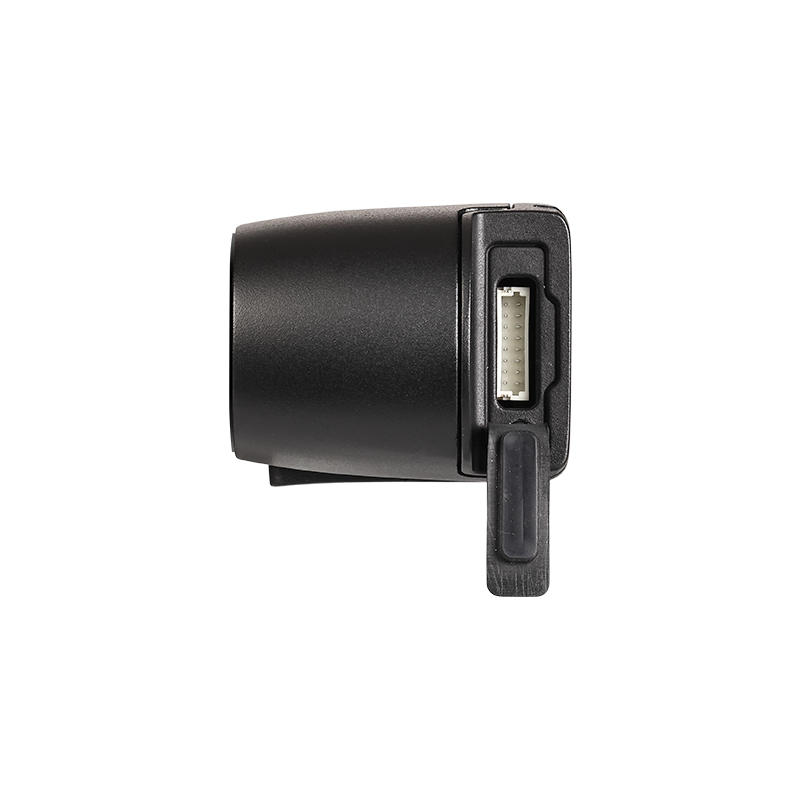

Side profile of Orbbec Gemini 336 3D camera featuring the 8-pin Sync Port for multi-device synchronization and industrial integration.
Side profile of Orbbec Gemini 336 3D camera featuring the 8-pin Sync Port for multi-device synchronization and industrial integration.
Bottom view of Orbbec Gemini 336 3D camera with standard mounting threads for stable tripod and robot integration.
Bottom view of Orbbec Gemini 336 3D camera with standard mounting threads for stable tripod and robot integration.

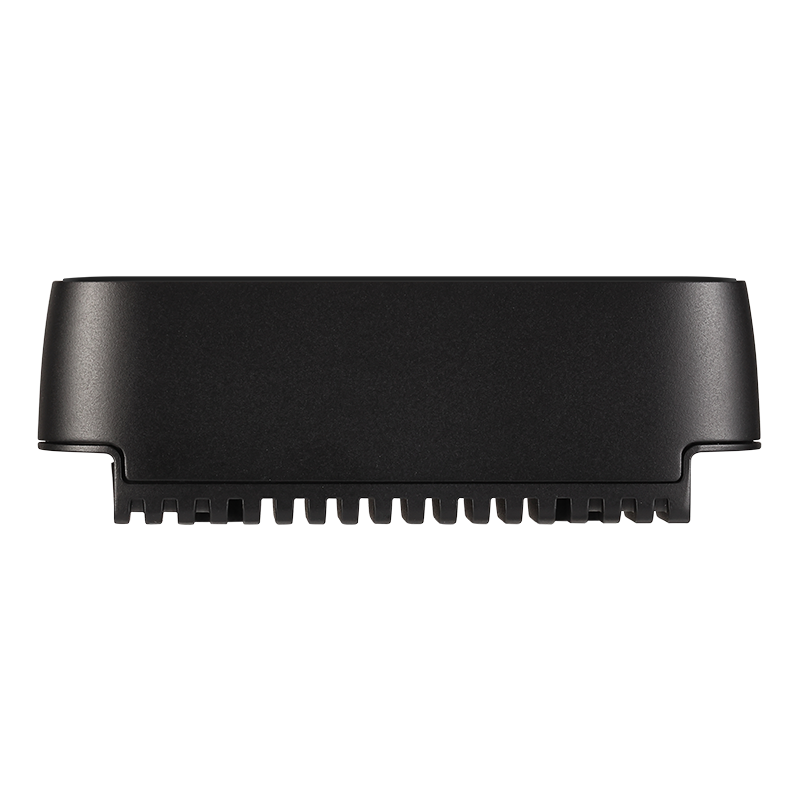

Top view of Gemini 336 3D camera showcasing its rugged fanless metal housing designed for harsh industrial environments.
Top view of Gemini 336 3D camera showcasing its rugged fanless metal housing designed for harsh industrial environments.
Click to open expanded view
Operating Environment Indoor & Outdoor
Depth Technology Stereo Vision
Depth Range 0.1 - 20m+
Ideal Range 0.3 - 3m
Wavelength 850nm
Processor MX6800 ASIC
IMU 6 DoF; Gyroscope/Accelerometer Sample range(ODR)：50 - 1,000Hz
Camera Driver UVC
SDK Orbbec SDK
Baseline 50 mm
Spatial Precision ≤ 1.5% (1280 x 800 @ 2m & 90% x 90% ROI)
Depth FoV 90° x 65° ± 3° @ 2m (1280 x 800)
Depth Resolution and Frame Rate Up to 1280 x 800 @ 30fps
Depth Shutter Type Global Shutter
RGB FoV 16：9 86° x 55° ± 3°; 4：3 70° x 55° ± 3°
RGB Resolution and Frame Rate Up to 1920 x 1080 @ 30fps
RGB Image Format YUYV & MJPEG
RGB Shutter Type Rolling Shutter
Power supply DC 5V & ≥ 1.5A
Power Consumption Average < 3.0W (Peak <6.5W)
IR Filter Cover IR-Pass
Connector USB 3.0 & USB 2.0 Type-C
Protection IP5X
Multi-device Sync port 8-pin
Operating Temperature -10℃ - 45℃ @ 15fps, -10℃ -40℃ @ 30/60fps, 5% ~ 90% RH (non-condensing)
Weight 99g
Dimensions (W*H*D) 90 mm x 25 mm x 30.7 mm
Installation Bottom：1x 1/4-20 UNC, Max Torque：4.0 N.m; Back：2x M3, Max Torque：0.4 N.m

Gemini 336

  • Stable Infrared Imaging
  • Multimodal Perception
  • Compact Size
Price
$284
Taxes and shipping calculated at checkout

What's Included:

● Gemini 336 3D Camera
● USB-C to USB-A cable
● Tripod
● Tripod head
● Quick Start Doc
In stock and ready for shipping
American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
Shop Pay
Visa

Share this product

Share Post E-mail

Orbbec Gemini 336 is the latest addition to Orbbec's Gemini 330 series.
Building on the exceptional depth performance and quality of the Gemini 335, the Gemini 336 enhances active infrared imaging by filtering out the visible light spectrum. This improvement ensures stable and precise imaging even in challenging lighting conditions, such as indoor reflective surfaces causing glare, brightly-lit scenes with shadows, and strong outdoor lighting.
